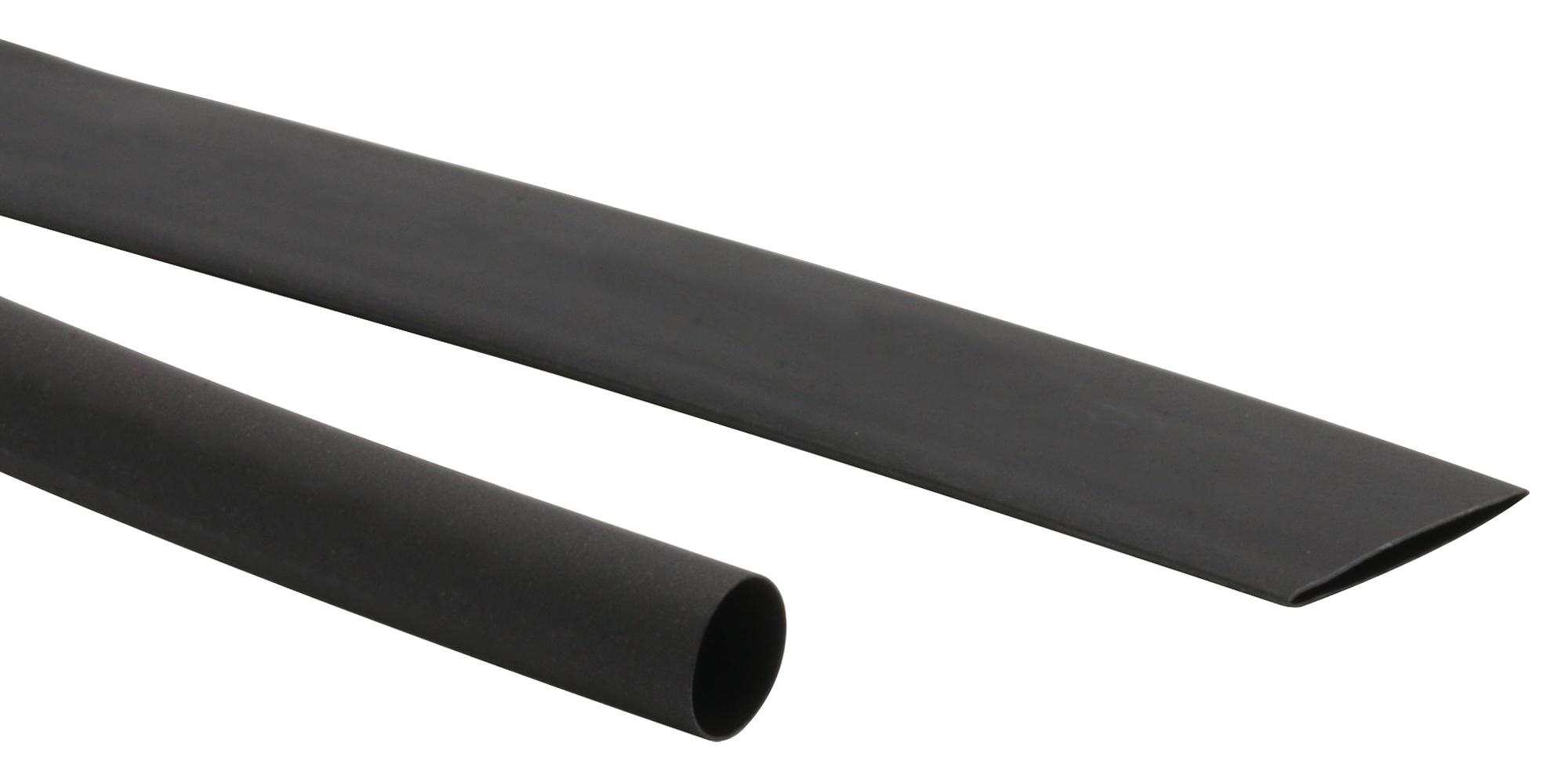

MULTICOMP PRO PP001880 Heat Shrink Tubing
Pro-Power Thin Wall Heat Shrink Tubing offers a flexible, halogen-free polyolefin solution designed for rapid shrinking and space-saving applications. With a low shrink temperature, it reduces installation time and minimizes risk to temperature-sensitive components. Made from environmentally friendly materials, it meets Sony-SS-00259 standards and RoHS compliance. Its ultra-thin wall construction features a 2:1 shrink ratio, a maximum operating temperature of 125°C, and excellent dielectric strength, tensile strength, and elongation. Suitable for electrical insulation, wire protection, and electronic applications, it ensures durability and safety in demanding environments.
MULTICOMP PRO PP001880 Heat Shrink Tubing Specifications:
- Operating Temperature: 1-55°C to +125°C
- Minimum Shrink Temperature: 270°C
- Full recovery temperature: 125°C
- Shrink Ratio: 2:1
- Colour: Black
- Tensile Strength: 210.4 Mpa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21 x 10^10 Ω·cm
- Flammability: FMVSS302 Pass
- Copper Stability: Pass
- Copper Corrosion: No corrosion
- Dimensions (for part PP001880): Internal diameter before recovery 3.4 mm, after recovery 40.2 mm, Wall thickness approximately 0.28 mm
- Material: Polyolefin, halogen-free
- Meets Sony-SS-00259 and RoHS standards
Buy the Farnell PP001880 – Reliable Heat Shrink for Industrial Applications
Purchase Farnell PP001880 Heat Shrink Tubing online for quick, reliable electrical insulation and wire protection. Designed with an ultra-thin wall, this halogen-free polyolefin tubing shrinks rapidly at low temperatures, saving installation time and reducing risk of damage to sensitive components. Its 2:1 shrink ratio ensures a snug fit around wires and connectors, providing excellent dielectric properties and mechanical protection. Ideal for electronic, automotive, and industrial wiring, this durable tubing ensures safety and compliance with environmental standards. Buy now for high-quality performance and fast delivery.
Get Farnell PP001880 today—built for precision, durability, and high-performance electronic insulation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001880?
You can click on the BUY or RFQ button to purchase PP001880 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001880?
You can download the PP001880 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001880?
MULTICOMP PRO
