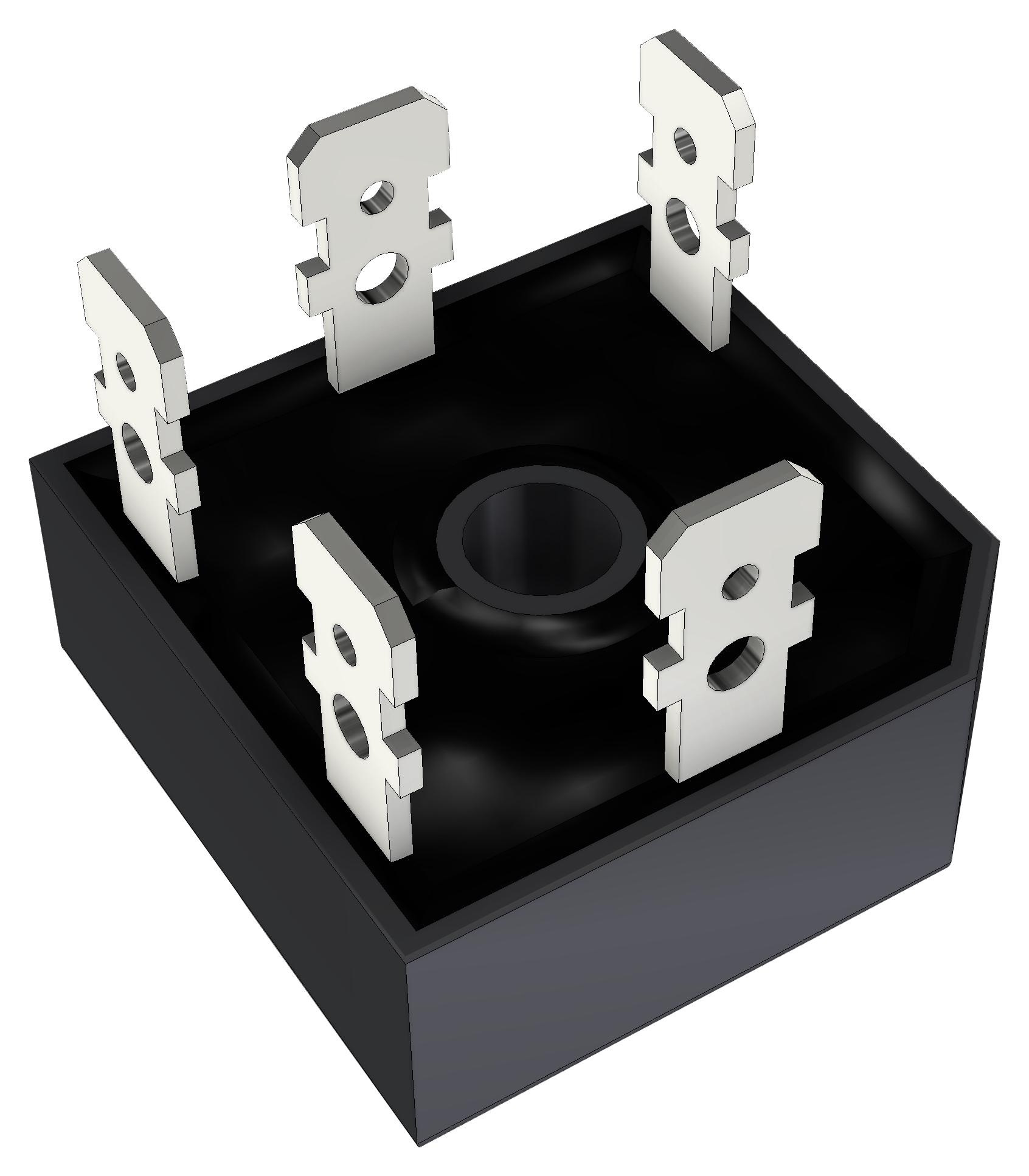

MULTICOMP PRO SBR2504 Three Phase Bridge Rectifier
The three-phase bridge rectifier is silicon-passivated, designed for high current and reliability in power conversion applications. It features diffused junctions, low forward voltage drop, and high surge current capability, making it ideal for printed circuit boards and various industrial power systems. The device includes a heat sink mounting option for efficient thermal management, with a robust epoxy case and plated solderable leads. Suitable for resistive, inductive, and capacitive loads, it ensures long-lasting performance under demanding electrical conditions, suitable for various voltage ratings from 50V to 1600V.
MULTICOMP PRO SBR2504 Three Phase Bridge Rectifier Specifications:
- Maximum Average Forward Current: 25A
- Peak Repetitive Voltage VRRM: 50V to 1600V depending on series
- Peak Reverse Surge Current: 375A at 60Hz
- Forward Voltage Drop: 1.4V at 12.5A/17.5A
- Operating Temperature Range: -55°C to +160°C
- Thermal Resistance Junction to Case: 1.42 kW
- Thermal Resistance Case to Heatsink: 0.2°C/W
- Isolation Voltage (Case to Lead): 2,500V
- Dimensions: 23.8mm diameter, 24.1mm length
- Mounting: Bolt down on heatsink with thermal compound, torque max 20 in-lbs
Buy the Farnell Series SBR Four-Wire Bridge Rectifier: SBR2504
Order the Farnell SBR2504 three-phase bridge rectifier online today for reliable high-current power conversion. Designed for industrial, resistive, inductive, and capacitive loads, this silicon-passivated device features low forward voltage drop, high surge capability, and robust thermal management. Its epoxy case with heat sink mounting ensures long-lasting performance and efficient operation at voltages up to 1600V. Perfect for power supplies, motor drives, and industrial automation, it guarantees durability and high reliability. Buy now for quick delivery and seamless integration.
Get Farnell SBR2504 today—built for high current and thermal efficiency in industrial power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SBR2504?
You can click on the BUY or RFQ button to purchase SBR2504 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SBR2504?
You can download the SBR2504 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SBR2504?
MULTICOMP PRO
