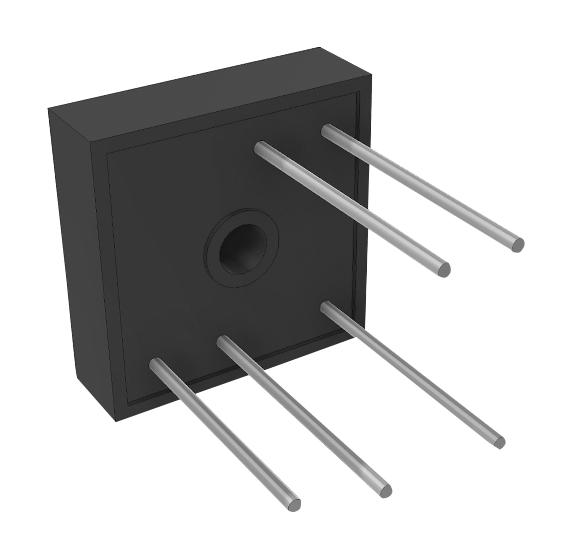

MULTICOMP PRO SBR3512W Three Phase Bridge Rectifier
This three-phase bridge rectifier offers high surge current capacity, low forward voltage drop, and reliable performance for converting AC to DC in industrial power systems. Designed with epoxy encapsulation and plated solderable leads, it is ideal for printed circuit boards and high-current applications. The device features a maximum average forward current of 35A, peak reverse voltages up to 1200V, and an operating temperature range from -55°C to +150°C. Its robust construction ensures high reliability, making it suitable for resistive, inductive, and capacitive loads with proper derating.
MULTICOMP PRO SBR3512W Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V (SBR3508W), 1000V (SBR3510W), 1200V (SBR3512W)
- Working Peak Reverse Voltage VRWM: 800V, 1000V, 1200V respectively
- Peak Non-Repetitive Reverse Voltage VR: 900V, 1100V, 1300V
- RMS Reverse Voltage VR(RMS): 560V, 700V, 840V
- Maximum Average Forward Loss: 35A at Tc = 55°C
- Peak Forward Surge Current: 480A at 8.3ms
- Maximum Forward Voltage Drop: 12V at 12.5A
- Reverse Peak Current: 5 pA at VRRM, 3 mA at 1100V/125°C
- Isolation Voltage between case and lead: 2500V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: Not specified
- Terminal: Plated leads solderable per MIL-STD-202, Method 208
- Mounting: Bolt down on heatsink with 2N.m torque
- Encapsulation: Epoxy case with heat sink
- Dimensions: Approx. 1.13 inches length, 0.87 inches width, with mounting hole diameters specified
- Applicable for industrial power conversion, rectification, and high-current applications
Buy the Multicomp Three Phase Rectifier – Reliable Power Conversion for Industrial Applications
Enhance your power systems with this high-capacity three-phase bridge rectifier, designed for industrial environments demanding durability and efficiency. It supports up to 1200V reverse voltage and 35A current, making it ideal for converting AC to DC in resistive, inductive, and capacitive loads. Featuring epoxy encapsulation and solderable plated leads, ensure your circuitry remains protected and reliable under extreme temperatures from -55°C to +150°C. Trust this rectifier to deliver consistent high-current performance in demanding applications, ensuring optimal power quality and system stability.
Buy multicomp three-phase bridge rectifier now and experience unmatched reliability and performance for high-current industrial power systems.
