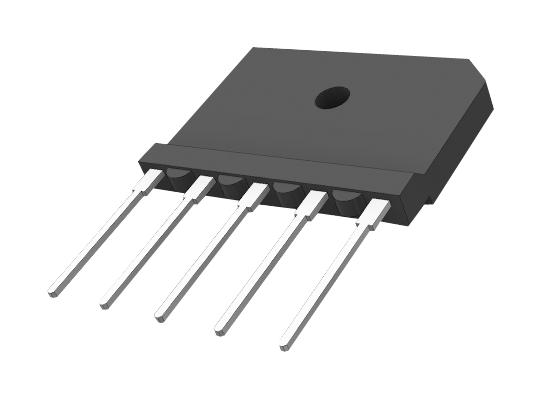

MULTICOMP PRO SGBJ2512 3 Phase Bridge Rectifier
The three-phase bridge rectifier is a glass passivated chip designed for high reliability and efficiency in power conversion applications. It features low forward voltage drop, insulation voltage of 2500V, and a compact, lightweight form factor with high thermal conductivity for minimal temperature rise. Suitable for powering DC equipment, PWM converter input rectification, and DC motor control, it demonstrates robust characteristics with a maximum repetitive voltage of 1200V, forward surge current of 350A, and a thermal resistance of 0.8°C/W. Its operating temperature range extends from -55°C to +150°C, making it ideal for diverse industrial environments.
MULTICOMP PRO SGBJ2512 3 Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1200V
- Peak Non-Repetitive Reverse Voltage VSrm: 1300V
- Maximum Average Forward Current: 25A
- Peak Forward Surge Current at 8.3ms: 350A
- Maximum Forward Voltage Drop at IF: 14V
- Reverse Peak Current IR: 3mA
- Insulation Voltage from Case to Lead Viso: 2500V
- Typical Thermal Resistance Junction to Case: 0.8°C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions (millimeters): Length 35.3, Width 34.7, Height 25.2, Hole Diameter 3.55
- Mounting Torque: 0.8 N·m
- Weight: 10 g
- Material: Glass passivated chip for high reliability
- Insulation Voltage: 2500V
- Applications: Power supplies, DC converters, PWM rectifiers, DC motor control
Buy the Multicomp Series SGBJ 3 Phase Bridge Rectifier: SGBJ2512
Discover the dependable performance of the Multicomp Series SGBJ2512 three-phase bridge rectifier, designed for industrial power systems, DC equipment, and motor drives. This lightweight, compact device features a high insulation voltage of 2500V, low forward voltage drop, and excellent thermal characteristics. Its robust construction and wide operating temperature range ensure durability in demanding environments. Purchase online now to enhance your power conversion systems with this reliable rectifier, engineered for efficiency, longevity, and superior electrical performance.
Get Multicomp Series SGBJ2512 today—built for high reliability, efficiency, and robust industrial power applications.
