MULTICOMP PRO SGBJ5012 Three Phase Bridge Rectifier
The SGBJ5012 is a high-reliability, glass-passivated three-phase bridge rectifier designed for efficient power conversion in industrial applications. It features low forward voltage drop, an insulation voltage of 2500V, and small size with light weight, making it suitable for power supplies, PWM converter inputs, and DC motor drives. Its robust construction ensures high thermal conductivity, low thermal resistance, and reliable operation over a temperature range of -55°C to +150°C, making it ideal for both resistive and inductive loads in demanding electrical environments.
MULTICOMP PRO SGBJ5012 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1200 V
- Peak Non-Repetitive Reverse Voltage VersM: 1300 V
- Maximum Average Forward Current: 50 A
- Peak Forward Surge Current: 840 A
- Maximum Forward Voltage Drop: 17.5 V at 17.5A
- Reverse Peak Current: 5 pA
- Insulation Voltage: 2500 V
- Thermal Resistance: 0.8 °C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Mounting Torque: 0.8 N·m
- Weight: 10 g

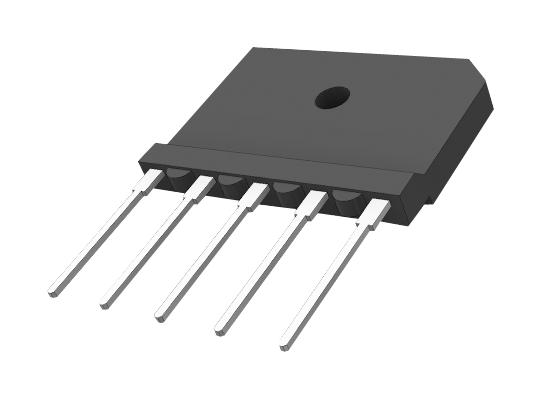

Buy the Multicomp Series SGBJ Bridge Rectifier: SGBJ5012
Purchase the Multicomp Series SGBJ5012 three-phase bridge rectifier online today to ensure reliable power conversion for industrial equipment, motor drives, and power supplies. This high-performance component offers low forward voltage, high thermal conductivity, and robust insulation, making it ideal for resistive or inductive loads. Its compact and lightweight design simplifies integration into your electrical systems. Order now for quick delivery and enjoy the confidence of using a durable, high-reliability rectifier that performs under demanding conditions.
Get Multicomp Series SGBJ5012 today—built for precision and long-lasting durability in your power conversion applications.
