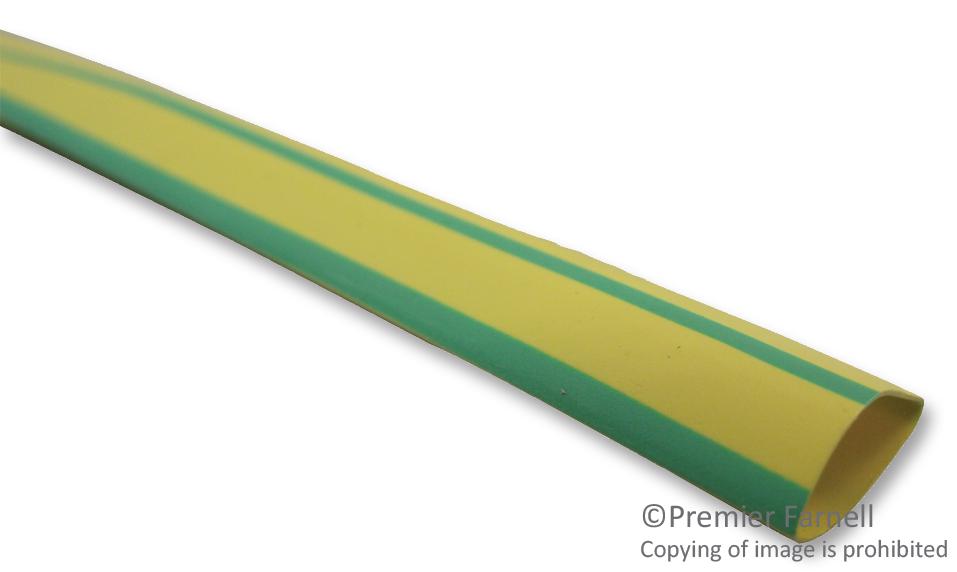

MULTICOMP PRO 15097 Polyolefin Heat Shrink Tubing
This high-quality polyolefin heat shrink tubing with a 2:1 shrink ratio provides excellent protection for wires and cables in electrical and electronic applications. Manufactured from radiation cross-linked polyolefin, it is halogen free, flexible, and shrinks at lower temperatures. Suitable for shielding temperature-sensitive components, it offers high mechanical strength, dielectric performance, and resistance to heat aging, chemicals, and corrosion. Available in various colors and sizes, it ensures reliable insulation and strain relief in demanding environments, with superior electrical properties and flame retardance for safety compliance.
MULTICOMP PRO 15097 Polyolefin Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^10 Ω·cm
- Flammability: FMVSS302 Pass
- Longitudinal Shrinkage: +1-5%
- Material: Radiation cross-linked polyolefin
- Available Colors: Green/Yellow, White, Green, Yellow, Blue, Red, Black, Grey
- Wall Thickness: 0.18+0.05 mm (for 1.2 mm size)
- Outer Diameter (after recovery): 0.33+/-0.10 mm (for 1.2 mm size)
- Maximum Diameter (after recovery): 0.50 mm (for smallest size)
- Length: 100 meters (typical)
Buy the Buy Multicomp Polyolefin Heat Shrink Tubing Part Number 15097 Online
Secure your electrical projects with Multicomp polyolefin heat shrink tubing, offering excellent insulation, flexibility, and environmental resistance. Perfect for protecting wires and cables in challenging conditions, this tubing features a 2:1 shrink ratio, high dielectric strength, and flame retardance. Easy to apply with quick recovery at 125°C, it ensures reliable strain relief, mechanical strength, and electrical performance. Available in multiple sizes and colors, it’s an ideal choice for electrical and electronic protection needs. Purchase online today for quick delivery and dependable performance.
Buy Multicomp polyolefin heat shrink tubing 25.4mm Green Yellow 15097 now and experience unmatched electrical insulation and durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 15097?
You can click on the BUY or RFQ button to purchase 15097 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 15097?
You can download the 15097 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 15097?
MULTICOMP PRO
