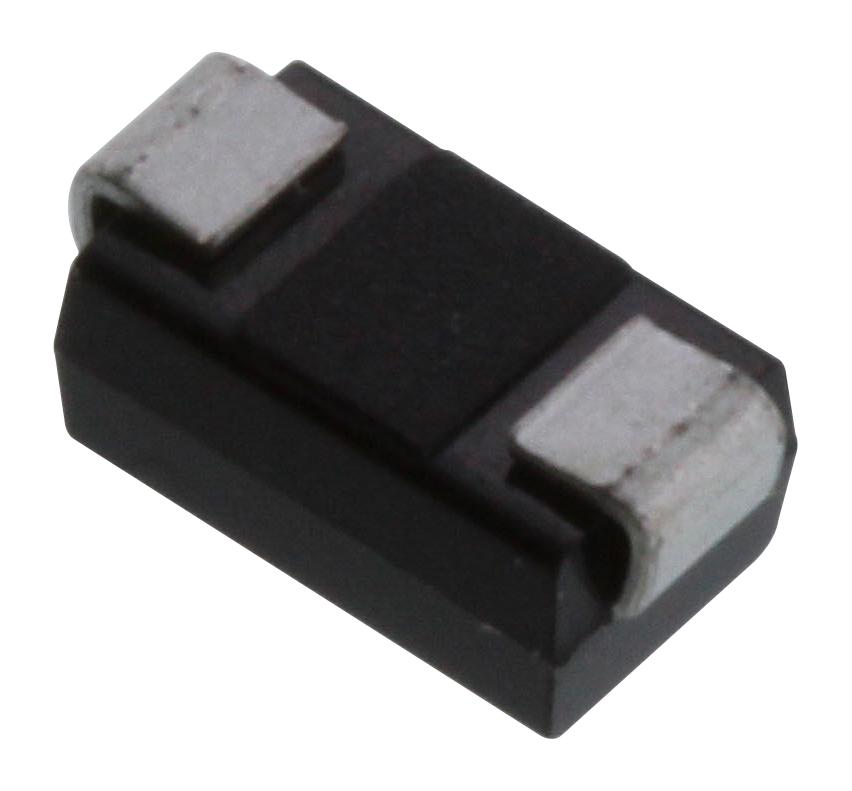

MULTICOMP PRO SMAJ4752A Silicon Zener Diode
This silicon Zener diode offers precise voltage regulation with a power dissipation of 1 Watt, suitable for surface mount applications. It features high surge current ratings, available in a JEDEC DO-214AC molded plastic case, and is passivated for stability. It operates across a temperature range of -55°C to +150°C and is compliant with safety standards such as UL 94-0. The diode's broad voltage range from 3.3V to 100V makes it ideal for voltage regulation, surge suppression, and circuit protection in various electronic equipment, ensuring reliable performance in demanding environments.
MULTICOMP PRO SMAJ4752A Silicon Zener Diode Specifications:
- Case: JEDEC DO-214AC molded plastic body
- Terminals: Solderable per MIL-STD-750, method 2026
- Polarity: Indicated by cathode band
- Maximum soldering temperature: 260°C for 10 seconds
- Voltage Range: 3.3 to 100 Volts
- Power Dissipation: 1.0 Watts
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -65°C to +175°C
- Peak Reverse Voltage: 7.5 to 56 Volts depending on model
- Maximum Forward Voltage: 1.2 Volts
- Surge Current: Up to 700 mA
- Maximum Impedance and Test Current parameters vary per model
- Dimensions: 0.067(1.7) to 0.183(4.65) inches in length and width, 0.030(0.76) inches in height
Buy the Multicomp silicone Zener Diode – Reliable Voltage Regulator for Industrial Applications
Order the Multicomp silicon Zener Diode SMAJ4752A online today for reliable voltage regulation in your electronic projects. This high-power surface-mount component offers an expansive voltage range from 3.3V to 100V, with a power dissipation of 1 Watt. Designed for use in circuit protection, surge suppression, and voltage regulation, it features a JEDEC DO-214AC case, high surge current handling, and stability across a wide temperature range. Perfect for industrial applications demanding durability and consistent performance, this diode ensures your circuits operate safely and efficiently in demanding environments.
Get Multicomp SMAJ4752A today—built for precision, high surge current, and long-lasting durability in industrial circuits.
