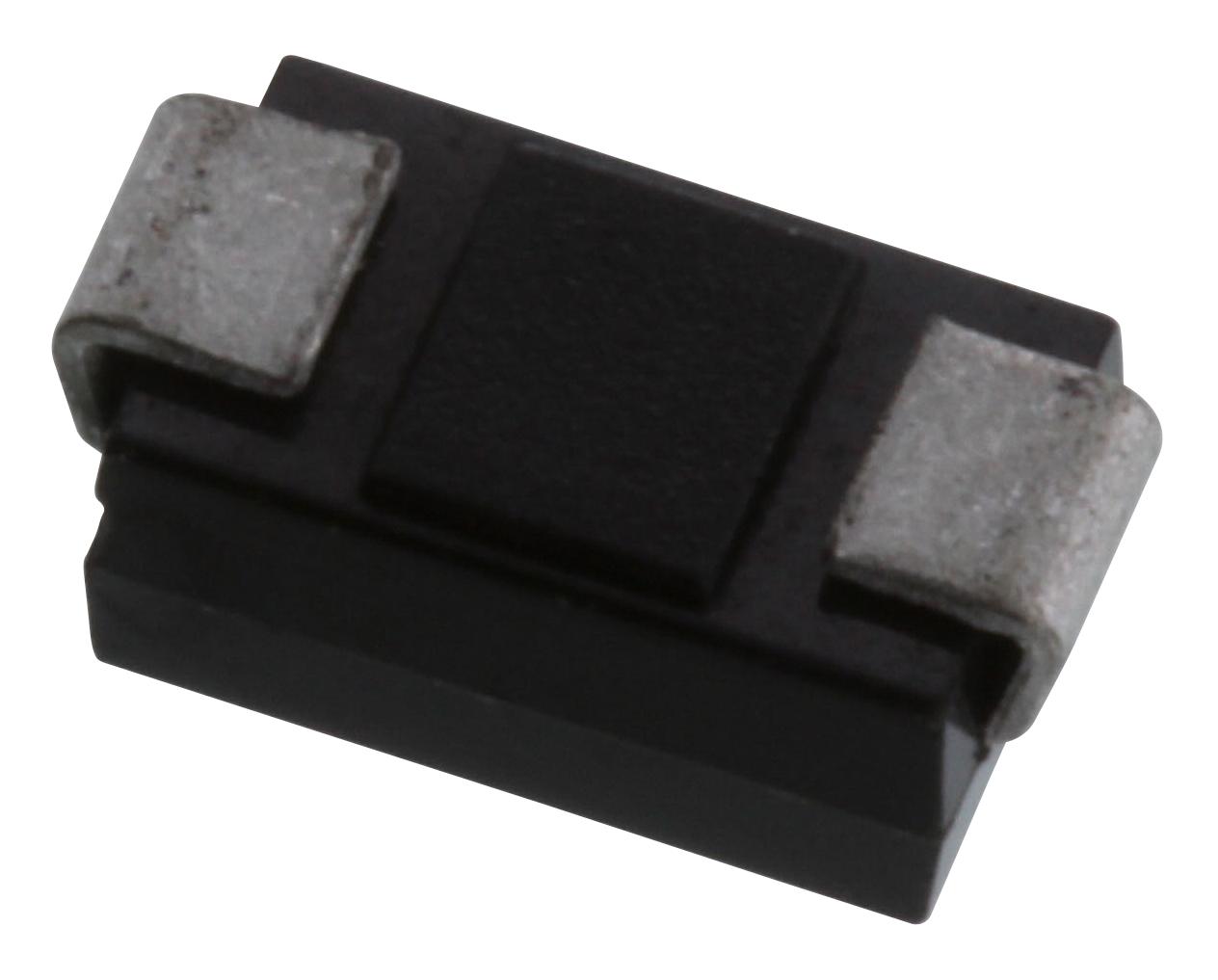

MULTICOMP PRO SMAJ58CA Transient Voltage Suppressor
The SMAJ58CA is a surface mount transient voltage suppressor designed to protect electronic circuits from voltage transients. Featuring a UL 94V-0 rated plastic case, it supports reverse voltages up to 175V and power dissipation of 400W. Suitable for both unidirectional and bidirectional applications, it boasts fast response times less than 1.0ns for unidirectional and less than 5.0ns for bidirectional modes. It is ideal for preventing voltage spikes caused by inductive loads, with a low leakage current and high break-down voltage, ensuring reliable circuit protection in various electronic devices and power systems.
MULTICOMP PRO SMAJ58CA Transient Voltage Suppressor Specifications:
- Case: Molded Plastic
- Polarity: Cathode band denotes unidirectional device; no cathode band indicates bidirectional
- Reverse Voltage: 5 to 170 Volts
- Peak Power Dissipation: 400 Watts
- Maximum Ratings: -55°C to +150°C operating temperature, -55°C to +175°C storage temperature
- Response Time: Less than 1.0ns (unidirectional), Less than 5.0ns (bidirectional)
- Leakage Current: Typically less than 1pA above 10V
- Weight: 0.002 ounces, 0.053 grams
- Power Dissipation: 400 Watts
- Peak Surge Current: 40A (8.3ms single pulse)
- Thermal Resistance Junction to Lead: Specified per model
- Maximum Reverse Breakdown Voltage (VBR): Up to 175V
Buy the Buy Multicomp Surface Mount Transient Voltage Suppressor Part Number SMAJ58CA Online
Secure your electronic systems with the SMAJ58CA surface mount transient voltage suppressor, offering high power dissipation and quick response to voltage spikes. Designed to withstand reverse voltages up to 175V, it ensures robust circuit protection against transient surges. The device’s molded plastic case features UL 94V-0 recognition, making it suitable for diverse applications. With a low leakage current and high peak power rating of 400W, it is ideal for safeguarding sensitive electronics in power supplies, automation, and various electronic devices. Fast response times minimize the risk of damage from voltage transients, ensuring reliable operation.
Order your Multicomp Series SMAJ58CA transient voltage suppressor today and protect your electronic circuits with reliable surge current suppression and fast response times.
