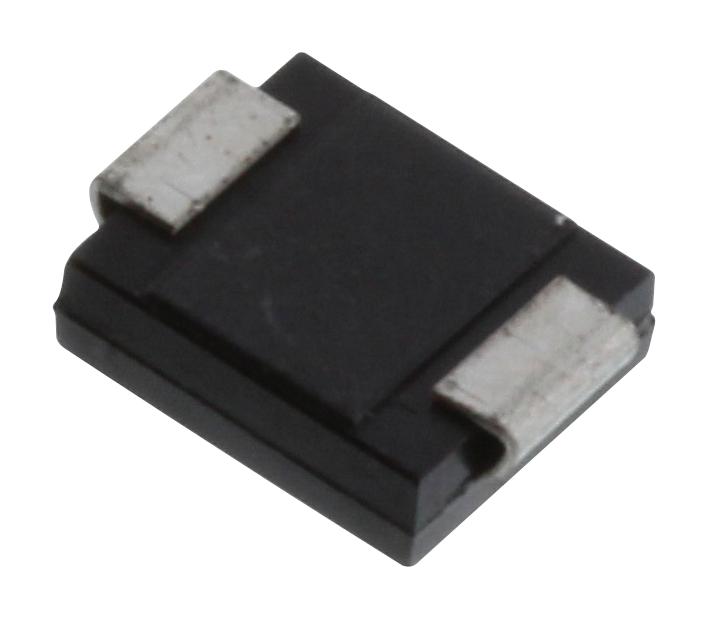

MULTICOMP PRO SMCJ15A Surface Mount Transient Voltage Suppressor
The SMCJ15A transient voltage suppressor diode safeguards electronic circuits from voltage spikes with a rating to 200V. Designed for surface-mounted applications, it features reliable construction using molded plastic with UL 94-0 recognition. It exhibits fast response times of less than 5ns for bi-directional and under 1ns for uni-directional variants, with a maximum power dissipation of 1500 Watts. Suitable for protecting sensitive components in various industrial electronics, it operates across a temperature range of -55°C to +150°C, with a reverse voltage of 5 to 440V. Compact and reliable, this device is essential for surge suppression.
MULTICOMP PRO SMCJ15A Surface Mount Transient Voltage Suppressor Specifications:
- Rating to 200V
- Surface mounted application
- UL recognition 94-0 plastic material
- Response time: less than 1ns for uni-directional, less than 5ns for bi-directional
- Maximum power dissipation: 1500 Watts
- Reverse Voltage: 5 to 440V
- Operating Temperature Range: -55°C to +150°C
- Case: Molded Plastic
- Polarity: Cathode band denotes uni-directional device, no band for bi-directional
- Weight: 0.007 ounces, 0.21 grams
- Peak pulse power dissipation: 1500W
- Pulse test: Tp = 50ms
- Surge current waveform per JEDEC standards
- Thermal Resistance: Junction to Ambient and Junction to Lead
Buy the Multicomp SMCJ15A – Reliable Surge Suppressor for Industrial Applications
Secure your electronic circuits with the SMCJ15A transient voltage suppressor available online. This high-performance device offers rapid response times of less than 5 nanoseconds for bi-directional and under 1 nanosecond for uni-directional options, with a power dissipation of 1500 Watts. Its compact molded plastic case features UL 94-0 flammability rating, ensuring reliability and safety. Designed for surface mounting, it covers a voltage range from 5V to 440V. Protect your sensitive components efficiently with this robust surge suppressor, available now for quick online purchase and fast delivery.
Buy Multicomp SMCJ15A now and experience unmatched reliability and performance in transient voltage protection for industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMCJ15A?
You can click on the BUY or RFQ button to purchase SMCJ15A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMCJ15A?
You can download the SMCJ15A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMCJ15A?
MULTICOMP PRO
