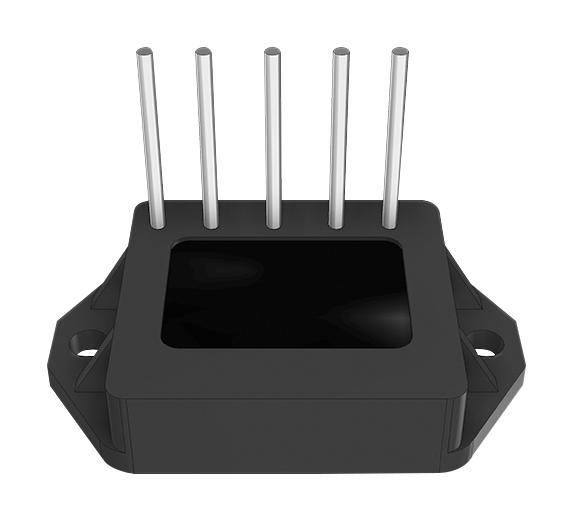

MULTICOMP-PRO SMT2510GW Three Phase Bridge Rectifier
The SMT2510GW is a 3 phase bridge rectifier with a 25A current rating and 1000V voltage rating, designed for efficient power conversion in industrial applications. It features glass passivation technology for high reliability, low forward voltage drop, and high surge current capability. Encased in a compact SMT package with heat sink capability, it ensures excellent thermal management. Suitable for PCB mounting, it supports both resistive and inductive loads, with derating for capacitive loads, making it ideal for power supply, inverter, and motor drive systems.
MULTICOMP-PRO SMT2510GW Three Phase Bridge Rectifier Specifications:
- Maximum RMS Reverse Voltage: 700V
- Peak Repetitive Voltage: 1000V
- Maximum Average Forward Rectified Current: 25A
- Peak Forward Surge Current: 320A
- Forward Voltage Drop per Element: 1.4V at 25A
- Reverse Peak Current: 5pA at Vrrm, 3mA at TJ=150°C
- Isolation Voltage: 2500V from case to lead
- Operating Temperature Range: -40 to +150°C
- Storage Temperature Range: -40 to +125°C
- Dimensions: 1.95 x 1.95 x 0.68 inches (49.6 x 49.6 x 17.2 mm)
- Mounting: Bolt down on heatsink with thermal compound, torque 2N·m
- Terminals: Plated leads, solderable as per MIL-STD-202, Method 208
Buy the Multicomp Series SMTGW 3 Phase Bridge Rectifier: SMT2510GW
Purchase the Multicomp SMT2510GW three-phase bridge rectifier online today to ensure high efficiency, low voltage drop, and reliable power management in your electronics and industrial systems. Engineered for high current applications, it offers excellent thermal performance and durability. Its compact SMT package allows easy PCB integration, making it perfect for power supplies, motor drives, and inverters. Order now and enhance your project with industry-leading quality and dependability from Multicomp.
Buy Multicomp SMT2510GW now and experience unmatched reliability and performance in your power conversion projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SMT2510GW?
You can click on the BUY or RFQ button to purchase SMT2510GW from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SMT2510GW?
You can download the SMT2510GW datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SMT2510GW?
MULTICOMP-PRO
