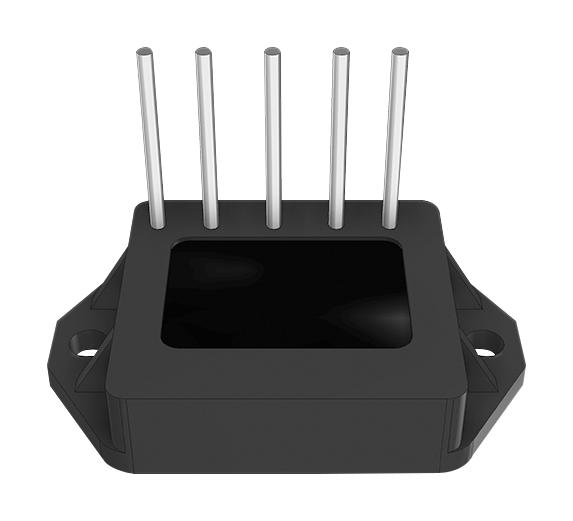

MULTICOMP-PRO SMT2514GW Three Phase Bridge Rectifier
The SMT2514GW is a high-reliability, glass-passivated three-phase bridge rectifier designed for industrial uses. Capable of handling 25A current with voltage ratings up to 1600V, it features low forward voltage drop, high surge current capacity, and robust epoxy case construction with heat sink compatibility. Suitable for printed circuit boards, it ensures efficient heat transfer when bolted to heatsinks using thermal compound. Its maximum operating temperature is -40°C to +150°C, making it ideal for power conversion and rectification in demanding environments.
MULTICOMP-PRO SMT2514GW Three Phase Bridge Rectifier Specifications:
- Maximum Average Forward Rectified Current: 25A
- Peak Repetitive Voltage: Up to 1600V
- Working Peak Reverse Voltage: Up to 1600V
- Peak Non-Repetitive Reverse Voltage: Up to 1700V
- DC Blocking Voltage: 800V to 1600V depending on model
- Maximum Forward Voltage Drop: 44V at 12.5A
- Peak Forward Surge Current: 320A
- RMS Reverse Voltage: Up to 1120V
- Reverse Peak Current: 5pA at VR=Vrrm
- Isolation Voltage from Case to Lead: 2500V
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Case Material: Epoxy with heat sink mounting capability
- Terminals: Plated leads, solderable per MIL-STD-202, Method 208
- Mounting: Bolt down with thermal compound for effective heat dissipation
- Weight: Approximately 21 grams
Buy the Multicomp 2514GW – Reliable Bridge Rectifier for Industrial Applications
Experience superior power rectification with the Multicomp 2514GW three-phase bridge rectifier, engineered for industrial efficiency. With a voltage rating up to 1600V and a current capacity of 25A, it provides reliable performance in demanding environments. Its robust epoxy case and heat sink mounting make it perfect for power conversion systems requiring high surge capability and heat dissipation. Ideal for printed circuit boards, it ensures longevity and consistent operation under harsh conditions, making it the go-to choice for industrial power applications.
Get Multicomp 2514GW today—built for precision, high voltage capacity, and long-lasting durability in power rectification.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SMT2514GW?
You can click on the BUY or RFQ button to purchase SMT2514GW from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SMT2514GW?
You can download the SMT2514GW datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SMT2514GW?
MULTICOMP-PRO
