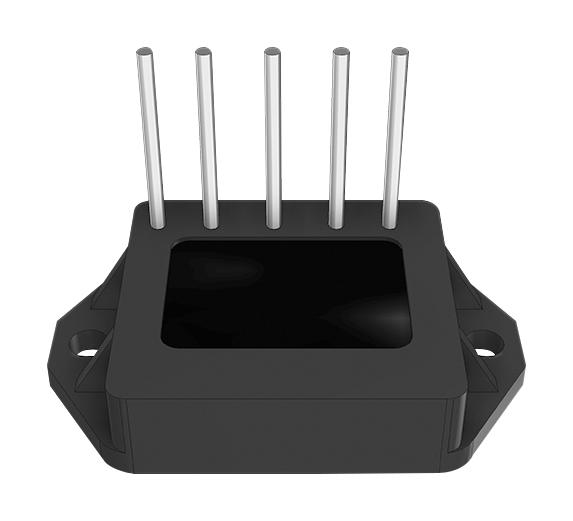

MULTICOMP PRO SMT3516GW 3-Phase Bridge Rectifier
The SMT3516GW is a high-current 3-phase bridge rectifier designed for efficient power conversion in industrial applications. Featuring glass passivation, it offers low forward voltage drop, high surge current capability, and excellent reliability. Suitable for use with resistive, inductive, and capacitive loads, it ensures robust performance with peak repetitive voltages up to 1600V and average forward currents of 35A. Its epoxy case with heat sink mounting is optimized for thermal management while solderable plated leads ensure ease of assembly. Ideal for rectification in power supplies and industrial equipment.
MULTICOMP PRO SMT3516GW 3-Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1600 V
- Working Peak Reverse Voltage VRWM: 1600 V
- Peak Non-Repetitive Reverse Voltage VRSM: 1700 V
- RMS Reverse Voltage VR(RMS): 1120 V
- Maximum Average Forward Rectified Current: 35 A
- Peak Forward Surge Current at 8.3ms: 360 A
- Maximum Forward Voltage drop: 44 V at 17.5A
- Reverse peak current: 5 pA at Vrrm=Vrrm@Ts=25°C
- Isolation Voltage from case to lead: 2500 V
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Mounting: Bolt down with silicone thermal compound, torque 2N.m
- Case: Epoxy with heat sink, plated leads, weight approx. 21 grams
Buy the Buy Multicomp Series SMT3516GW Part Number SMT3516GW Online
Purchase the Multicomp Series SMT3516GW 3-phase bridge rectifier online and enhance your power supply designs with this reliable, high-capacity component. Featuring 1600V peak voltage and 35A current capacity, it offers low forward voltage drop, high surge current capability, and excellent thermal management thanks to its epoxy case with heat sink. Its solderable plated leads and robust construction make installation straightforward and dependable. Ideal for industrial applications, this rectifier ensures efficient power conversion, durability, and long-term performance for demanding electronic systems.
Order your Multicomp Series SMT3516GW high-current 3-phase bridge rectifier today and ensure robust performance in your industrial power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMT3516GW?
You can click on the BUY or RFQ button to purchase SMT3516GW from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMT3516GW?
You can download the SMT3516GW datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMT3516GW?
MULTICOMP PRO
