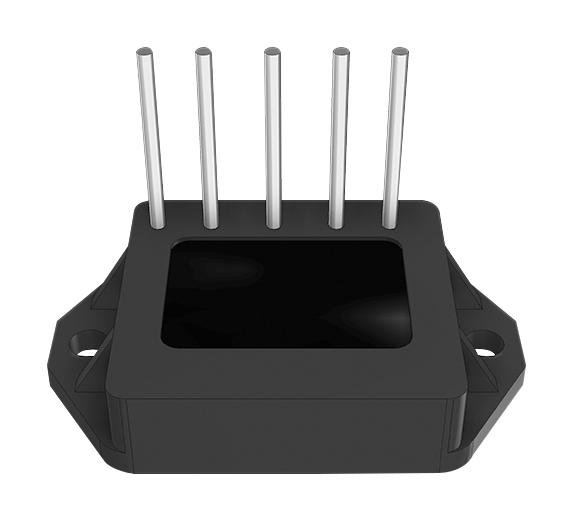

MULTICOMP PRO SMT5008GW Three Phase Bridge Rectifier
The three-phase bridge rectifier SMT5008GW is designed for high-current, high-reliability applications in power electronics. It features glass passivation for improved temperature and electrical performance. With a maximum repetitive peak reverse voltage of 800V and a maximum average forward rectified current of 50A, it efficiently converts AC to DC. Its epoxy case with heat sink compliance ensures durability and effective heat dissipation. Suitable for resistive or inductive loads, it supports mounting on heatsinks using thermal compound, making it ideal for industrial and commercial power systems.
MULTICOMP PRO SMT5008GW Three Phase Bridge Rectifier Specifications:
- Maximum Peak Repetitive Reverse Voltage: 800V
- Maximum Working Peak Reverse Voltage: 800V
- Maximum DC Blocking Voltage: 800V
- Maximum RMS Reverse Voltage: 560V
- Maximum Average Forward Rectified Current: 50A
- Peak Forward Surge Current: 400A
- Maximum Forward Voltage Drop: 4.4V at 25A
- Reverse Peak Current: 5pA at VR=Vrrm
- RMS Isolation Voltage from case to lead: 2500V
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Physical Dimensions (Inches): 1.948 x 1.953 x 0.183
- Mounting: Bolt down with thermal compound, torque 2N.m
- Case Material: Epoxy with heatsink
- Terminals: Plated leads solderable per MIL-STD-202, Method 208
Buy the Multicomp Series SMT5008GW Power Rectifier: 800V 50A
Purchase the Multicomp Series SMT5008GW three-phase bridge rectifier online now to benefit from high current capacity, robust design, and reliable performance. This 50A, 800V component is perfect for industrial power systems and offers glass passivation for enhanced electrical stability. Its epoxy case with a heatsink ensures effective heat dissipation, while its solderable plated leads simplify installation. Ideal for converting AC to DC in resistive and inductive loads, this rectifier provides excellent surge current capacity and long-lasting performance. Buy online today for fast delivery and trusted quality.
Order your Multicomp Series SMT5008GW high-current three-phase bridge rectifier today and ensure reliable power conversion with excellent durability and heat management.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMT5008GW?
You can click on the BUY or RFQ button to purchase SMT5008GW from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMT5008GW?
You can download the SMT5008GW datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMT5008GW?
MULTICOMP PRO
