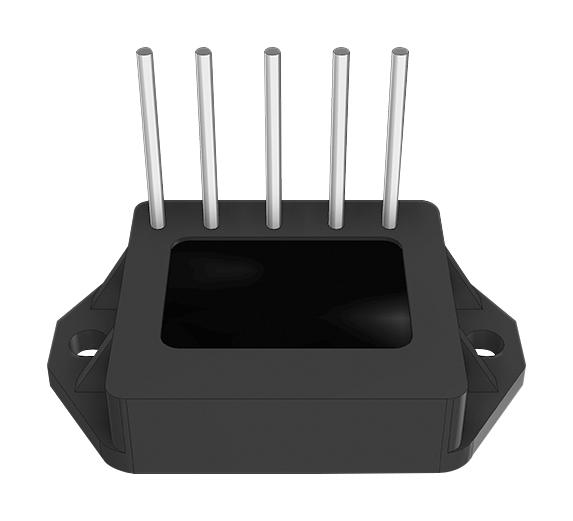

MULTICOMP PRO SMT5010GW Three Phase Bridge Rectifier
The SMT5010GW is a 3-phase bridge rectifier designed for high current and voltage applications, offering low forward voltage drop, high surge current capability, and high reliability. It features an epoxy case with heat sink mounting, plated leads for soldering, and can be bolted onto heatsinks with thermal compound for optimal heat dissipation. Suitable for resistive, inductive, and capacitive loads, it operates within temperatures from -40°C to +150°C, making it ideal for power supply, industrial, and automation systems requiring robust, high-performance rectification.
MULTICOMP PRO SMT5010GW Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800-1600 V depending on model
- DC Blocking Voltage VR: up to 1700 V
- Peak Non-Repetitive Reverse Voltage VRsM: 900-1700 V
- RMS Reverse Voltage VR(RMS): 560-1120 V
- Maximum Average Forward Rectified Current: 50A
- Peak Forward Surge Current: 400A
- Maximum Forward Voltage drop per element: 44V at 25A
- Reverse Peak Current: 5pA (at VR=Vrrm, 25°C)
- Isolation Voltage from case to lead: 2500V
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Mounting: Bolt down with silicone thermal compound, torque 2 N·m
- Weight: approximately 21 grams
- Case: Epoxy with heat sink mounting, plated leads solderable
- Dimensions: varies by model, compatible with SMTGW package
- Certifications: UL Listed, CSA Certified
Buy the Multicomp Series SMTGW Rectifier: SMT5010GW
Purchase the Multicomp SMT5010GW three-phase bridge rectifier online today to ensure your power systems operate efficiently and reliably. This high-current rectifier features low forward voltage drop, robust surge current capacity, and excellent heat dissipation properties through its epoxy case with heat sink mounting. Ideal for use in industrial, automation, and power supply applications, it provides stable operation across a wide temperature range, ensuring durability and high performance in demanding environments. Order now and enhance the reliability of your power equipment.
Buy Multicomp SMT5010GW high-current three-phase bridge rectifier now and experience unmatched reliability and performance for industrial power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMT5010GW?
You can click on the BUY or RFQ button to purchase SMT5010GW from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMT5010GW?
You can download the SMT5010GW datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMT5010GW?
MULTICOMP PRO
