MULTICOMP PRO SMT5016GW Three Phase Bridge Rectifier
The SMT5016GW is a high-current, three-phase bridge rectifier designed for efficient power conversion across various voltage ratings up to 1600V. It features a glass passivated construction for high reliability, low forward voltage drop, and high surge current capability. Encased in an epoxy case with a heat sink, it is suitable for PCB mounting with plated solderable leads. Rated at 50A, it performs well in resistive and inductive loads, operating between -40°C to +150°C, making it ideal for industrial power supply applications requiring robust and reliable rectification.
MULTICOMP PRO SMT5016GW Three Phase Bridge Rectifier Specifications:
- Maximum Average Forward Rectified Current: 50A
- Peak Forward Surge Current: 400A
- Peak Repetitive Voltage VRRM: Up to 1600V
- Working Peak Reverse Voltage VRWM: Up to 1600V
- DC Blocking Voltage VR: Up to 1600V
- RMS Reverse Voltage VR(RMS): Up to 1120V
- Maximum Forward Voltage Drop: 1.0V at 25A
- Reverse Peak Current: 5pA at Vrrm=1600V, 25°C
- Reverse Voltage Non-Repetitive VRsM: 1700V
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Thermal Dissipation: Suitable for bolt-down on heat sink with thermal compound
- Dimensions (Inches): 1.948 x 1.953 x 0.183, (Millimeters): 50.4 x 49.6 x 4.65
- Terminal Type: Plated leads, solderable per MIL-STD-202, Method 208
- Case Material: Epoxy with heat sink mounting capability
- Polarity: Marked on the body for correct installation
- Mounting: Bolt down with torque of 2 N·m for optimal heat transfer

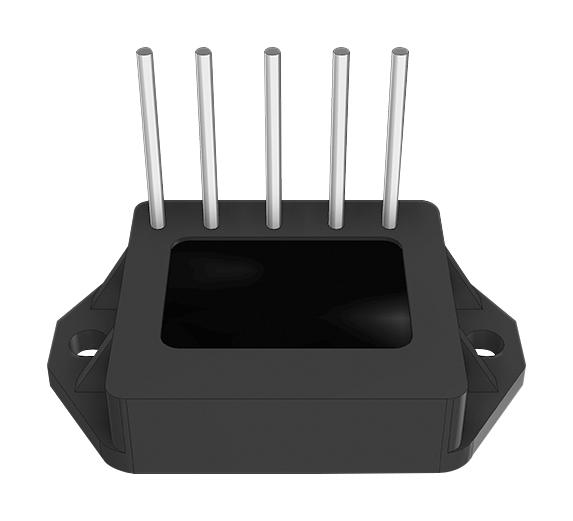

Buy the Multicomp Series SMTGW Rectifier: SMT5016GW
Order the Multicomp SMT5016GW three-phase bridge rectifier online today and experience durable, high-capacity power rectification. Designed for industrial use, it supports voltages up to 1600V and currents of 50A, ensuring optimal performance in resistive and inductive loads. Its glass passivated construction offers high reliability, low forward voltage, and excellent surge capacity. Compact and easily mountable with a heat sink, this rectifier is perfect for power supply systems requiring stable, robust performance. Shop now for quick delivery and quality assurance.
Buy Multicomp SMT5016GW high-current three-phase bridge rectifier now and ensure reliable, efficient power conversion for your industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMT5016GW?
You can click on the BUY or RFQ button to purchase SMT5016GW from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMT5016GW?
You can download the SMT5016GW datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMT5016GW?
MULTICOMP PRO
