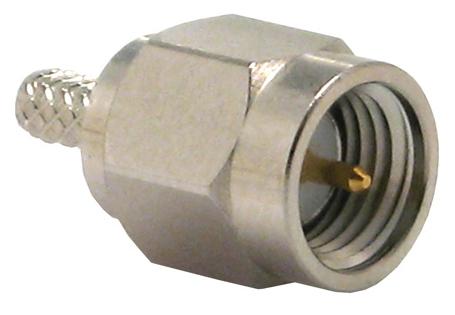

MULTICOMP PRO SPC10054 SMA Coaxial Connector
This SMA coaxial straight plug is a high-quality RF connector designed for precise applications involving RF and microwave signals. Crafted with brass and gold-plated contacts, it ensures low signal loss and reliable connections up to 12.4 GHz frequency range. The crimp termination offers a secure and durable attachment to RG-58, 58A, 58C, 141, and other compatible cables. Its PTFE insulator provides excellent dielectric properties, making it suitable for high-frequency, professional telecommunications, and test equipment setups. This connector complies with RoHS standards, ensuring environmentally safe usage.
MULTICOMP PRO SPC10054 SMA Coaxial Connector Specifications:
- Connector Type: SMA Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 50Ω
- Frequency Range: DC to 12.4 GHz
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated
- Body Material: Brass, Gold Plated
- Insulator Material: PTFE
- Gasket: Silicone, Red
- Shell Material: Brass, Gold Plated
- Ferrule Material: Copper, Gold Plated
- Compatible Cables: RG-58, 58A, 58C, 141, 141A, Belden 8240, 8259, 8262, 9201, 9203, 9310, 9311, Comm/Scope 0268
- Dimensions: 12.70 mm (0.5 inch) length
- Part Number: SPC10054
Buy the Multicomp Series SMA Coaxial Straight Plug: SPC10054
Purchase the Multicomp SMA Coaxial Connector SP C10054 online today and enjoy quick delivery, professional-grade quality, and secure crimped connections up to 12.4 GHz. Designed with durable gold-plated brass, PTFE insulators, and proven compatibility with popular coaxial cables, this connector guarantees optimal signal fidelity. Ideal for telecommunications, test and measurement, and RF systems, it offers a robust and environmentally compliant solution for demanding applications. Order now to ensure your RF setups operate flawlessly with this high-performance connector.
Buy Multicomp SPC10054 now and experience unmatched reliability and performance for high-frequency RF connections.
