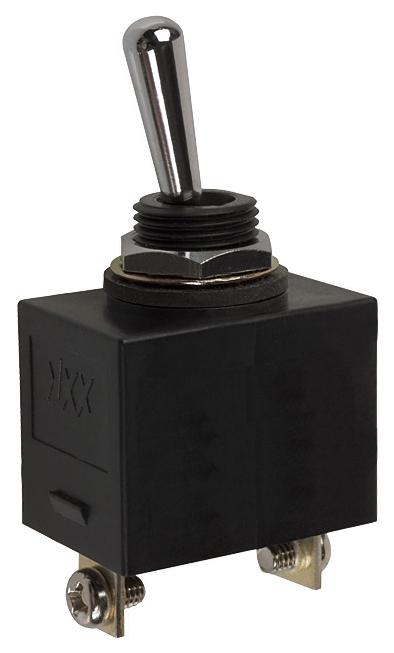

MULTICOMP PRO SPC21160 Toggle Switch
The SPC21160 is a durable, non-illuminated single-pole, single-throw toggle switch suitable for industrial use. It features a chrome-plated brass actuator, nickel-plated brass screw terminal, and silver alloy contacts for reliable performance. Rated for 215A at 250V AC and 20A at 125V AC, it offers a maximum contact resistance of 20 milliohms and an insulation resistance of 200 megaohms at 500VDC. With a lifespan of 40,000 cycles and operation temperature from -30°C to 85°C, it's ideal for rugged control panels and machinery.
MULTICOMP PRO SPC21160 Toggle Switch Specifications:
- Action: SPST
- Contact Rating: 215A at 250V AC, 20A at 125V AC
- Max. Contact Resistance: 20mΩ
- Dielectric Strength: 1,500Vrms
- Min. Insulation Resistance: 200MΩ at 500V DC
- Operating Life: 40,000 cycles
- Operating Temperature: -30°C to +85°C
- Material: Actuator - Brass, chrome plated; Bushing - Brass, nickel plated; Contact - Silver alloy; Support - Brass, tin plated
- Terminal Types: SPC21159, SPC 21160 - Brass, nickel plated, screw terminals; SPC21522 - Brass, tin plated, solder terminals; SPC21157 - Bare brass, flat terminals
- Switching Position: ON-None-OFF
Buy the Multicomp Series SPST Toggle Switch: SPC21160
Upgrade your control panel with the reliable Multicomp Series SPST toggle switch. Designed for durability, it features a chrome-plated brass actuator, silver alloy contacts, and screw or solder terminals for versatile installation. Rated for 215A at 250V AC, it provides excellent current handling for industrial machinery. With a lifespan of 40,000 cycles, it performs under demanding conditions from -30°C to 85°C. Perfect for applications requiring durable, high-current switches, order online for fast delivery.
Order your Multicomp Series SPC21160 toggle switch today and ensure reliable, long-lasting performance for your industrial control applications.
