MULTICOMP-PRO MP003990 DC Link Capacitors
These high-performance DC link film capacitors feature metallized polypropylene film construction, integrated mounting flanges, and low ESR for efficient DC filtering applications. Designed for wind and solar inverters, electric vehicle inverters, and motor drives, they offer life expectancy up to 100,000 hours, flame retardancy UL94-VO, and a temperature range of 0°C to +105°C. Available in various capacitance values from 30UF to 265UF and rated voltages up to 1800V DC, these capacitors ensure reliable operation in demanding power conversion environments with minimal self-inductance and thermal conductivity enhancements.
MULTICOMP-PRO MP003990 DC Link Capacitors Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265UF
- Capacitance tolerance: ±10%
- Rated voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600, 1800
- Test voltage between terminals: 1.3 times rated voltage for 60 seconds
- Test voltage terminal to case: KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: Megaohms x microfarads at 25°C
- Markings: Grade DCL-23, capacitance value pF, rated voltage V DC, max current Arms, capacity tolerance, manufacturing code, part number

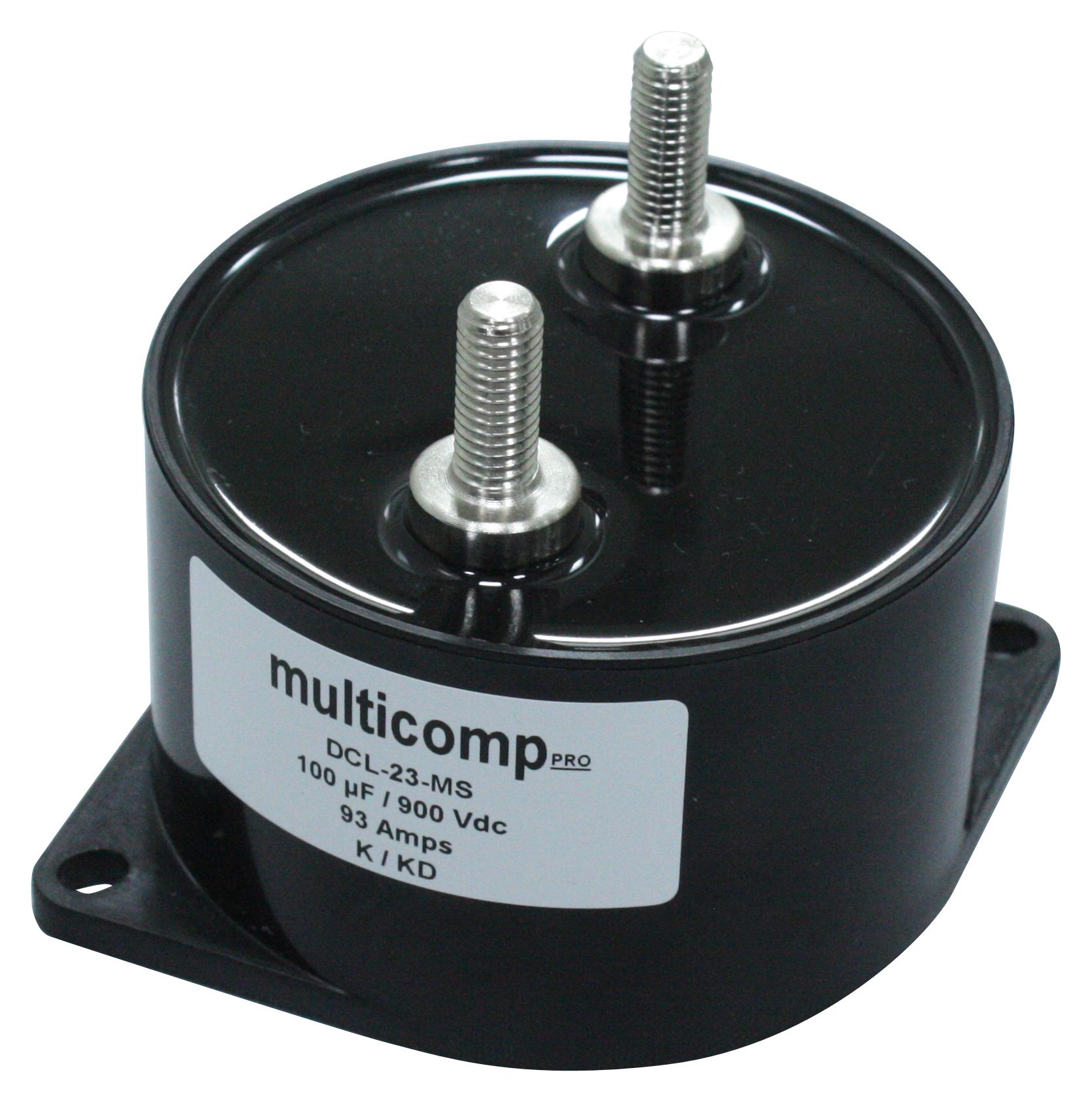

Buy the Buy Multicomp DC Link Film Capacitors Part Number MP003990 Online
Purchase Multicomp DC Link Film Capacitors MP003990 online today to ensure robust DC filtering in wind, solar, and electric vehicle inverters. These premium capacitors feature metallized polypropylene film construction, low ESR, and integrated flanges for easy mounting. With a life expectancy of up to 100,000 hours and rated voltages up to 1800V DC, they deliver exceptional performance in demanding power conversion applications. Their flame retardant UL94-VO case, temperature range from 0°C to +105°C, and broad capacitance options make them ideal for reliable, high-efficiency energy systems.
Get Multicomp DC Link Film Capacitors MP003990 today—engineered for reliable power filtering and long-lasting operation in inverter systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP003990?
You can click on the BUY or RFQ button to purchase MP003990 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003990?
You can download the MP003990 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP003990?
MULTICOMP-PRO
