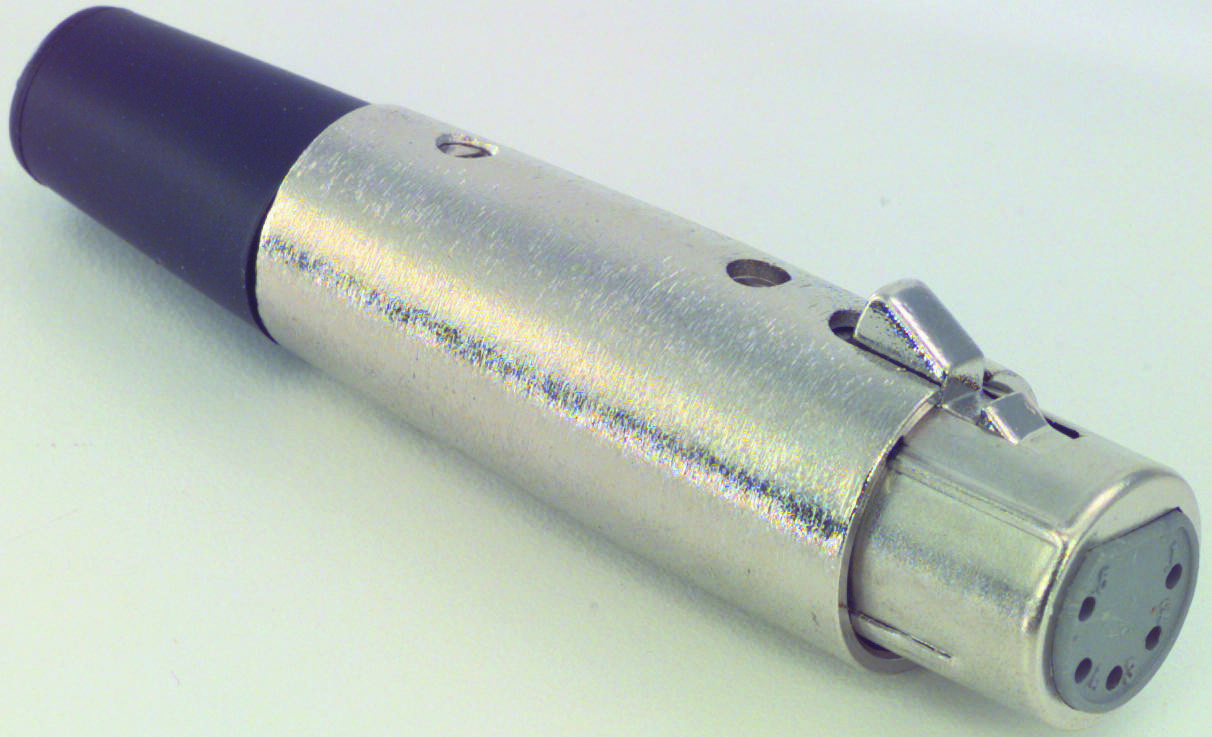

MULTICOMP-PRO SPC21422 Female XLR Connector
The SPC21422 is a female XLR audio connector designed for professional audio applications. It features a durable zinc die-cast housing with a nickel finish, a grey UL94V-0 rated PPO-1 insulator, and brass, silver-plated pins for excellent conductivity. The connector includes a PVP cable relief for strain relief, with a contact rating of 15A at 125V AC. Its insulation resistance exceeds 5000 MΩ at 500V DC, and it can operate effectively within -55°C to +70°C. Ideal for audio systems, test equipment, sensing, instrumentation, and computer peripherals, ensuring reliable, high-quality connections.
MULTICOMP-PRO SPC21422 Female XLR Connector Specifications:
- Contact Rating: 15A at 125V AC
- Contact Resistance: 5 mΩ Max
- Insulation Resistance: 5000 MΩ Min at 500V DC
- Dielectric Strength: 1400V AC
- Capacitance: 4 pF maximum
- Insertion Force: 1 kg to 8 kg
- Withdrawal Force: 1 kg to 8 kg
- Finish: Nickel-plated zinc die-cast housing
- Operating Temperature: -55°C to +70°C
- Housing Material: Zinc die cast, nickel plated
- Insert Insulator: PPO-1, UL94V-0 rated, grey
- Pins: Brass, silver plated
- Cable Relief: PVP, matte finish
- RoHS Compliant
Buy the Buy Multicomp Pro XLR Female Audio Cord Part Number SPC21422 Online
Purchase the Multicomp Pro Female XLR Connector SPC21422 online for high-quality audio connectivity. Featuring a zinc die-cast housing, silver-plated pins, and UL94V-0 rated insulator, this connector offers excellent durability and performance. Its PVP cable relief provides strain relief, and it has a contact rating of 15A at 125V AC. Suitable for audio, instrumentation, and test applications, this connector ensures secure, high-quality signal transfer. Order now to benefit from fast shipping and technical support.
Get Multicomp Pro SPC21422 today—built for reliable audio connections and long-lasting durability in professional environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SPC21422?
You can click on the BUY or RFQ button to purchase SPC21422 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SPC21422?
You can download the SPC21422 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SPC21422?
MULTICOMP-PRO
