MULTICOMP-PRO SPC4801 USB Cable Assembly

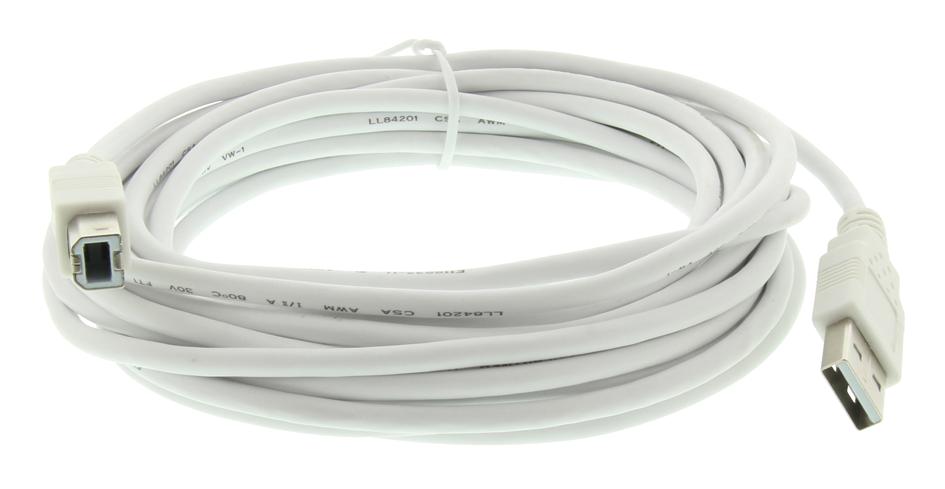

The SPC4801 is a 5-meter white cable assembly featuring a USB Type-A connector on one end and a USB Type-B connector on the other. This full-speed USB 2.0 compliant cable is designed for reliable data transfer in computer peripherals and industrial applications. It has overmolded PVC insulation, UL94V-0 rated glass fiber-filled thermoplastic housing, and gold-plated phosphor bronze contacts for enhanced durability and conductivity. Capable of supporting 30V AC, 1A maximum current per contact, with an insertion force of 4kg, it offers a robust solution for power and data connections across various environments.
MULTICOMP-PRO SPC4801 USB Cable Assembly Specifications:
- Material: Connector housing: Thermoplastic, Glass fiber fill, UL94V-0; Contact: Phosphor Bronze, Gold Plating; Shell: Steel, Tin-Lead Plating; Cable: PVC, UL94V-0
- Electrical: Voltage: 30V AC; Current: 1A Max per Contact
- Mechanical: Insertion Force: 4kg Max; Withdrawal Force: 2-4kg
- Environmental: Thermal Shock: 10 cycles from -55°C to +85°C; Color: Off White
Buy the Buy Multicomp Pro USB Cable Assembly Part Number SPC4801 Online
Purchase the Multicomp Pro USB Cable Assembly SPC4801 online today to ensure seamless data and power connectivity. This high-quality, 5-meter white cable features durable PVC insulation, gold-plated contacts, and UL94V-0 rated thermoplastic housing, making it perfect for both computer peripherals and industrial environments. With a maximum current of 1A per contact and support for 30V AC, it provides reliable performance and long-lasting durability. Order now for fast delivery and a secure data transfer solution.
Get Multicomp Pro SPC4801 today—built for reliable data transfer and durable industrial connections.
