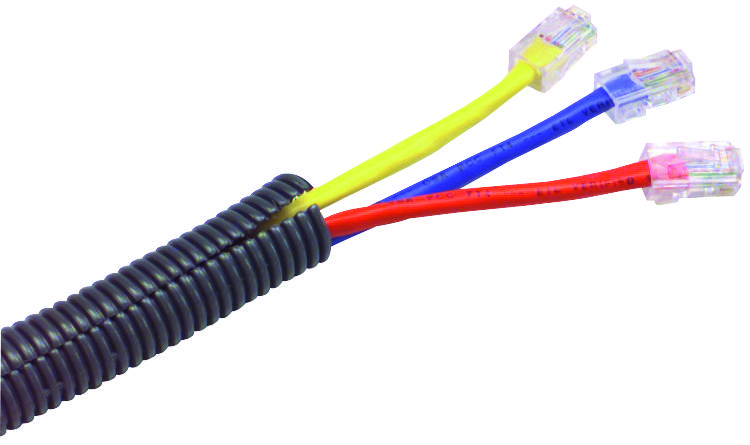

MULTICOMP PRO 1431 Flame Retardant Polyethylene Tubing
The MULTICOMP PRO 1431 is a flexible convoluted tubing or conduit manufactured from a flame retardant polyethylene resin. It exhibits excellent flexibility and good abrasion and chemical resistance. Typical physical properties include a tensile strength of 14.99619 MPa and a heat deflection temperature ranging from 104°C to 122°C. This tubing is ideal for wire harnessing, cable protection, and other applications requiring a durable and flame-retardant solution. Product tolerances are general and may be tighter depending on the material. Cut-to-length specifications vary based on length.
MULTICOMP PRO 1431 Flame Retardant Polyethylene Tubing Specifications:
- Flexibility: Excellent
- Abrasion Resistance: Good
- Chemical Resistance: Good
- Operating Temperature: -40°C to +93°C
- Specific Gravity/Density: 1.005
- Elongation@Break: 945%
- Elongation@Yield: 167%
- Tensile Strength@25C: 14.99619 MPa
- Flexural Modulus: 240 MPa
- Melting Point: 239°F (115°C)
- Notched Izod Impact Test: 10 ft lb/in
- Heat Deflection Temperature@66psi: 104°F (40°C)
- Heat Deflection Temperature@264psi: 122°F (50°C)
- Nominal ID Diameter: 1/2" (13mm)
- Dimension A ID Min: 12.01 mm
- Dimension A ID Max: 13.11 mm
- Dimension B OD Min: 16.87 mm
- Dimension B OD Max: 17.78 mm
- Dimension C Wall Min: 0.12 mm
Buy the 1431 MULTICOMP PRO Flame Retardant Polyethylene Tubing | myMectronic
Purchase the MULTICOMP PRO 1431 Flame Retardant Polyethylene Tubing securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1431?
You can click on the BUY or RFQ button to purchase 1431 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1431?
You can download the 1431 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1431?
MULTICOMP PRO
