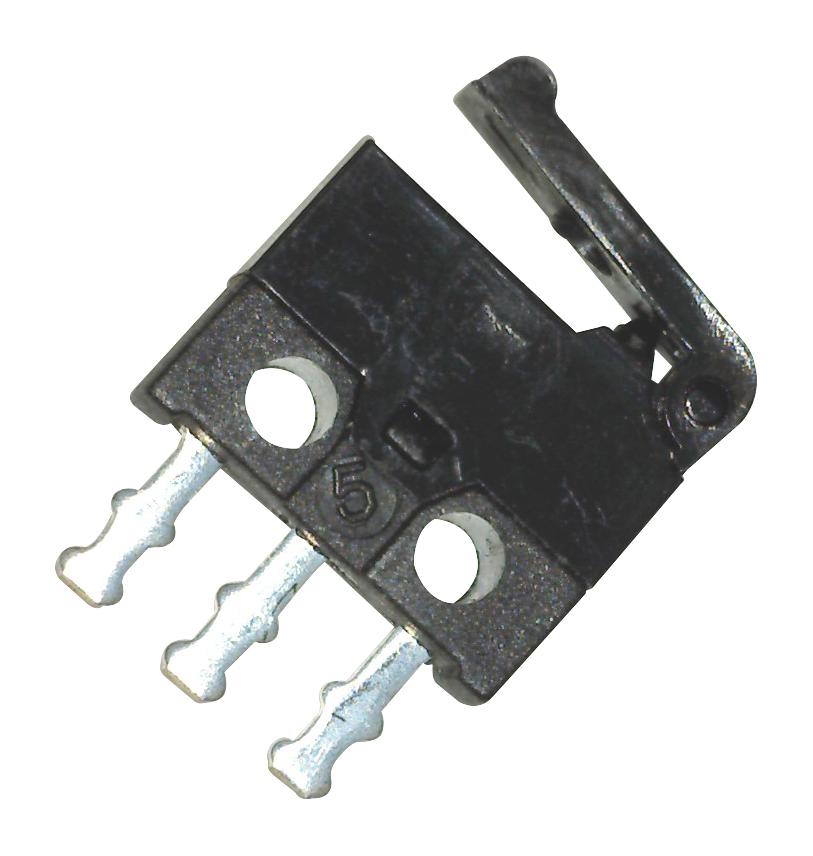

MULTICOMP-PRO SSM001 Snap Action Switch
The SSM-001 is a durable single-pole double-throw snap action switch designed for industrial applications. It features a robust PBT housing, cover, and lever, along with a POM actuator. The switch uses silver alloy contacts and silver-plated brass terminals for reliable performance. It has a maximum initial contact resistance of 100 milliohms, insulation resistance of 100 megaohms at 250V DC, and is rated for 30V DC at 500mA. Its temperature range is -15°C to +70°C, with a maximum operating force of 50 to 120 gf, supporting up to 100,000 cycles typically, and up to 250,000 cycles upon request.
MULTICOMP-PRO SSM001 Snap Action Switch Specifications:
- Rating: 30V DC, 500mA
- Max. Initial Contact Resistance: 100mΩ
- Min. Insulation Resistance: 100MΩ at 250V DC
- Dielectric Strength: 500V AC for 1 minute
- Temperature Range: -15°C to +70°C
- Max. Operating Force: 50 to 120 gf
- Min. Switch Life: 100,000 cycles, up to 250,000 cycles upon request
- Housing: PBT
- Cover: PBT
- Lever: PBT
- Actuator: POM
- Contacts: Silver alloy
- Terminals: Brass, silver plated
Buy the Multicomp Series SSM Switch: SSM001
Purchase the Multicomp Series SSM001 snap action switch online today and ensure reliable control in your industrial applications. With a PBT housing, silver alloy contacts, and rated for 30V DC and 500mA, this switch guarantees long-lasting performance. Its compact design includes a POM actuator and silver-plated terminals, supporting over 100,000 cycles. Perfect for automation systems, its robust construction withstands temperatures from -15°C to +70°C. Get yours now for high-quality, dependable switching solutions with quick online delivery.
Order your Multicomp Series SSM001 snap action switch today and ensure dependable switching performance for industrial control applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SSM001?
You can click on the BUY or RFQ button to purchase SSM001 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SSM001?
You can download the SSM001 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SSM001?
MULTICOMP-PRO
