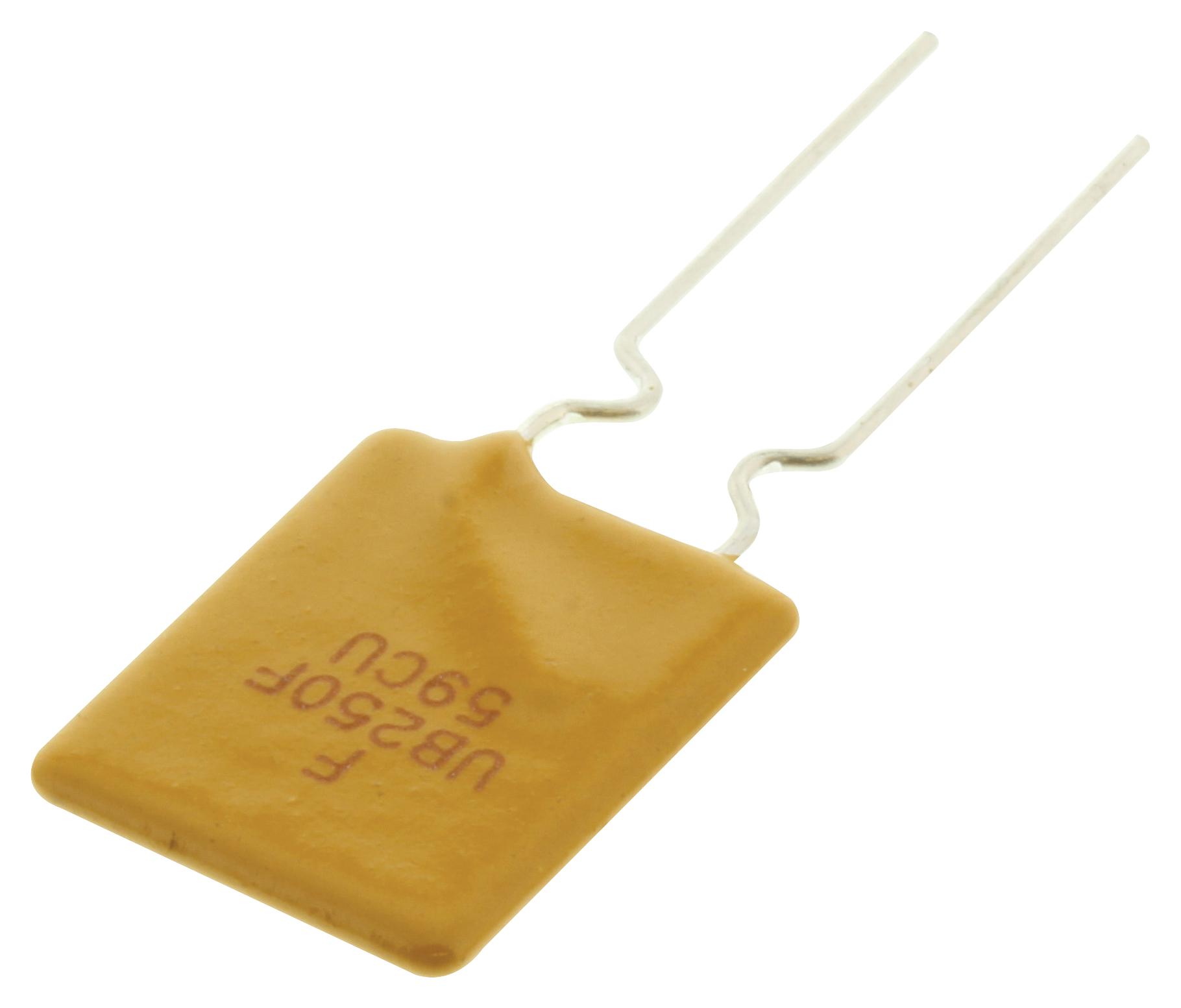

MULTICOMP PRO MC36253 Resettable Fuse
The Radial Leaded PTC resettable fuse from multicomp is designed for low voltage applications such as USB equipment and computers. It features low resistance, fast trip time, and a low trip-to-hold ratio, ensuring efficient overload protection. Suitable for environments with temperatures from -40°C to 85°C, it can withstand voltages up to 16V/30V and rated currents from 0.75A to 25A. Constructed with tin-plated copper leads and flame-retardant epoxy coating, this fuse offers reliable performance and ease of soldering, making it ideal for compact electronic systems requiring durable, resettable circuit protection.
MULTICOMP PRO MC36253 Resettable Fuse Specifications:
- Lead material: Tin plated copper
- Soldering characteristics: Solder ability per ANSI/J-STD 002, withstands solder heat per IEC 68-2-20
- Insulating coating: Flame retardant epoxy polymer
- Maximum voltage: 16V/30V
- Temperature range: -40°C to 85°C
- Rated currents: 0.75A to 25A
- Trip current: 1.3A to 27A
- Maximum fault current: 16A to 40A
- Power dissipation: Up to 0.8W
- Physical dimensions: Lead diameter 0.51mm, length approx. 6.9mm to 14.2mm depending on model
- Lead size: 24 AWG
- Dimensions: A=6.9-11.4mm, B=11.4-18.3mm, C=5.1mm, D=76mm, E=3mm, F=0.8mm
- Thermal derating: Considers ambient temperature variations for reliability
Buy the Farnell Series Resettable Fuse: MC36253
Order the Farnell MC36253 resettable fuse online today to ensure reliable overload protection for your USB devices and computers. This high-performance fuse offers fast trip times, low resistance, and robust construction with tin-plated copper leads and flame-retardant epoxy coating. Designed to operate efficiently across temperatures from -40°C to 85°C, it withstands voltages up to 16V/30V and current ratings up to 25A. Its compact size and easy soldering capability make it ideal for high-density electronic applications requiring proven safety and durability. Get yours now for seamless circuit protection.
Buy Farnell MC36253 now and experience unmatched reliability and performance with this durable resettable fuse for your low voltage electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC36253?
You can click on the BUY or RFQ button to purchase MC36253 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC36253?
You can download the MC36253 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC36253?
MULTICOMP PRO
