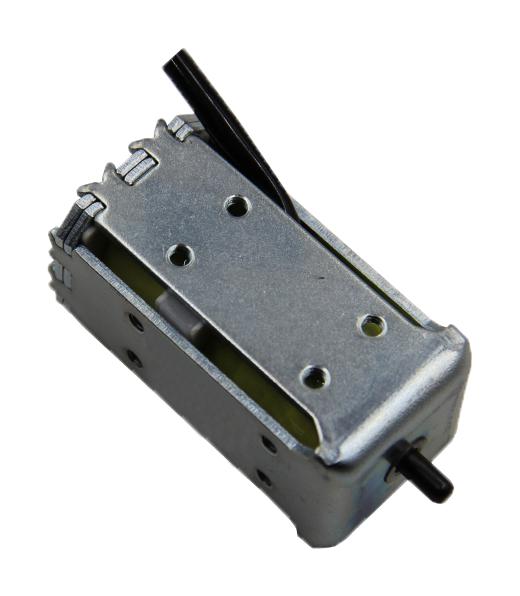

MULTICOMP-PRO MP001160 Latching Solenoid
The latching solenoid operates on 24V DC with a holding force above 25N, offering high durability with 210 million cycles. It has insulation resistance of 250MΩ at 500V DC and dielectric strength of 1500V AC. The device features a compact design with dimensions suitable for various industrial applications, operating within -20°C to +65°C. It complies with RoHS standards, ensuring environmental safety. The solenoid's response time is 220ms, with a duty cycle of up to 9%. Designed for reliable, long-term use, it supports an insulation class B (130°C) and has an IP00 degree of protection.
MULTICOMP-PRO MP001160 Latching Solenoid Specifications:
- Operating Voltage: 24V DC ±10%
- Holding Force: above 25N
- Response Time: 220ms
- Wattage: 46.08W at R=12.5Ω, 57.6W at R=10Ω
- Temperature Range: -20°C to +65°C
- Storage Temperature: 1-20°C to +45°C
- Insulation Resistance: 250MΩ at 500V DC
- Dielectric Strength: 1500V AC 50/60Hz
- Insulation Class: B (130°C)
- Degree of Protection: IP00
- Life Cycle: approx. 210 million cycles
- Response Cycle: 25ms On, 250ms Off (max on time 1s, duty cycle 9%)
- Lead Strength: 1 kgf for 30 seconds
- Dimensions: Millimetres (see diagram)
Buy the Premier Farnell Series Latching Solenoid: MP001160
Purchase the high-performance latching solenoid MP001160 online now to enhance your automation systems with reliable, energy-efficient electromagnetic actuation. Engineered for durability, this 24V DC device supports high cycle counts reaching 210 million and provides a holding force above 25N, ensuring robust operation in demanding environments. Its compact design, quick response time of 220ms, and RoHS compliance make it suitable for diverse industrial applications. Secure your supply chain by ordering immediately for fast delivery and seamless integration into your control systems.
Order your Premier Farnell Series Latching Solenoid MP001160 today and give your projects the dependable long-lasting performance they deserve.
