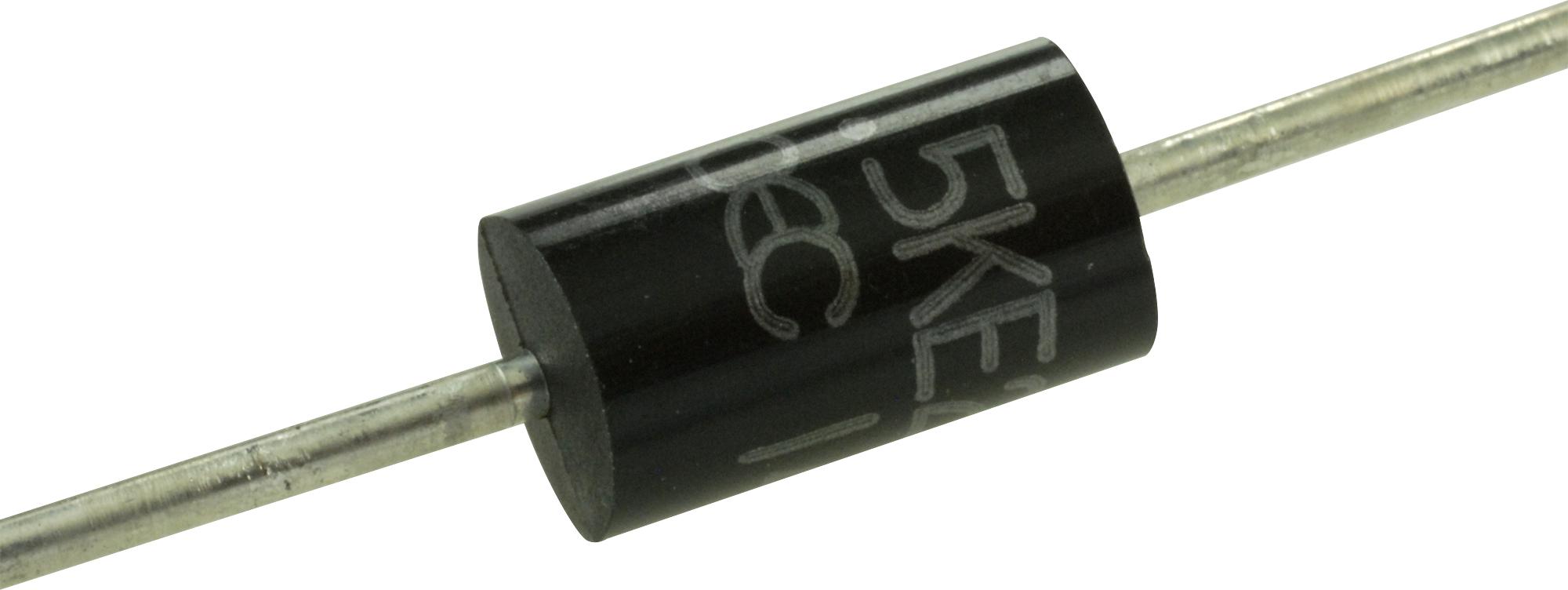

MULTICOMP 15KE250CRH Transient Voltage Suppressor
The 1.5KE series Transient Voltage Suppressor diode provides a surge current of 1500W for 1ms. It features glass passivated junction, low Zener impedance, and excellent clamping for reliable surge protection. Available in unidirectional and bidirectional types, it operates across -65°C to 175°C, with high surge capability, fast response, and low leakage current. Its plastic package is UL 94V-0 rated, with axial leads suitable for soldering. Ideal for industrial surge protection, it ensures durability and high performance in voltage spikes and transient events.
MULTICOMP 15KE250CRH Transient Voltage Suppressor Specifications:
- Package: Plastic UL 94V-0 rated
- Junction: Glass passivated chip
- Peak Power Dissipation: 1500 W at 1 ms
- Steady State Power Dissipation: 5 W at 75°C
- Surge Capability: 1500 W at 1 ms
- Peak Forward Surge Current: 200 A for 8.3 ms
- Operating Temperature Range: -65°C to +175°C
- Lead Length: 0.375 inches (9.5 mm) axial leads
- Dimensions: Diameter 0.210 inches (5.3 mm), length 0.188 inches (4.8 mm)
- Mounting: Any position
- Weight: 0.045 ounces (1.2 grams)
- Response Time: Typically less than 1.0 ps from 3V to BV min
- Bipolar: Yes, with polarity indicated by color band
- Application: Industrial surge protection and transient voltage suppression
Buy the SPC Series Transient Voltage Suppressor: 15KE250CRH
Equip your electrical systems with the SPC 15KE250CRH transient voltage suppressor diode. This high-capacity surge protector handles up to 1500W at 1ms, ensuring safety and reliability during voltage spikes. Its glass-passivated junction offers excellent durability, while low impedance enables fast response to transients. Suitable for industrial environments, it features axial leads for easy installation and operates across a wide temperature range from -65°C to 175°C. Protect sensitive electronics and power systems efficiently with this robust device.
Buy SPC 15KE250CRH now and experience unmatched reliability and performance in surge and transient voltage suppression.
