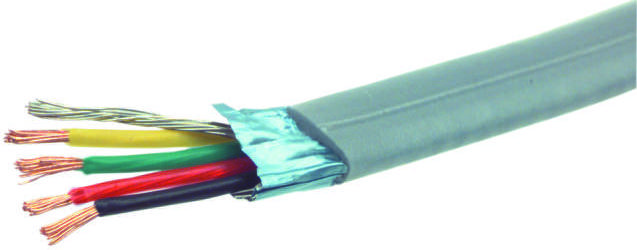

MULTICOMP SPC19822RH EMI Shielded Telephone Cable
The SPC19822-RH is a 100-foot, 8-conductor shielded EMI flat telephone cable designed for reliable communication and networking applications. It features 24 AWG copper conductors with stranded tinned copper drain wire, a flame-retardant PVC jacket, and an aluminum/polyester shield for EMI protection. The cable operates at up to 60°C and 150V, with a conductor resistance of 93 ohms per kilometer, insulation resistance of at least 100 megaohms, dielectric strength of 500VAC, and 2kV spark in air. Suitable for precise wiring in telephony and data systems, it offers durability and high performance in various environments.
MULTICOMP SPC19822RH EMI Shielded Telephone Cable Specifications:
- Conductor Material: Stranded tinned copper
- Conductor Size: 24 AWG (11/0.16T)
- Number of Conductors: 8
- Cable Length: 100 feet
- Insulation Material: Polypropylene
- Jacket Material: Flame-retardant PVC
- Outer Diameter: Approximately 0.95 mm
- Shield Material: Aluminum/Polyester
- Drain Wire: 24 AWG stranded tinned copper
- Temperature Rating: 60°C
- Voltage Rating: 150V
- Conductor Resistance: Max 93 Ohms/KM at 20°C
- Insulation Resistance: Min 100 Megohms/KM at 20°C
- Dielectric Strength: 500 VAC/1 min
- Spark Test: 2KV in air
- Packaging: Suffix -SL for paper/plastic spool or -RH without center packaging
- RoHS Compliant: Yes
Buy the Buy Cable Pro EMI Shielded Flat Telephone Part Number SPC19822RH Online
Discover the reliability of our EMI Shielded Telephone Cable, 24 AWG, 8 conductors, with flame-retardant PVC jacket, ideal for telecommunications, networking, and data wiring. This 100-foot cable offers exceptional EMI protection through its aluminum/polyester shield, ensuring your signals are clear and interference-free. Rated for 60°C and 150V, it features low resistance, high insulation resistance, and robust dielectric strength. Perfect for professional installations, it guarantees durability and high performance in various environments, with warranty support and customer satisfaction guaranteed.
Buy Cable Pro EMI Shielded Flat Telephone with 8 Conductors and Flame-Retardant PVC Jacket now and experience reliable communication and high-quality wiring solutions.
Frequently Asked Questions
Where can I buy MULTICOMP SPC19822RH?
You can click on the BUY or RFQ button to purchase SPC19822RH from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC19822RH?
You can download the SPC19822RH datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC19822RH?
MULTICOMP
