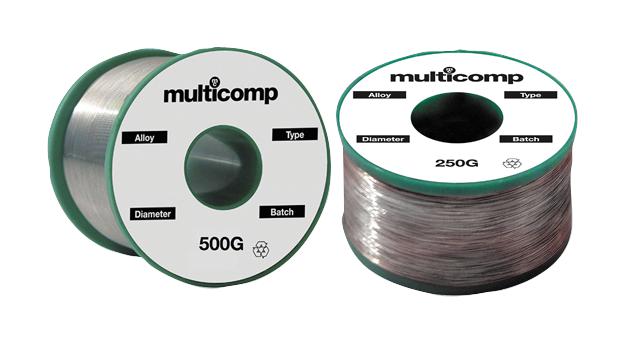

MULTICOMP 5071434 Flux Cored Solder Wire
Multicomp Typ 400, 505 & 511 cored solder wires are designed to complement modern soldering processes, particularly no-clean wave and reflow techniques. These wires feature modified rosin fluxes with carefully selected activators, providing fast soldering, excellent spread on copper, brass, and nickel, and leaving minimal clear residue. Different flux contents are available to optimize performance for various applications, with Typ 400 offering a halide-free option. The wires conform to national and international standards and are available in a wide range of diameters. Cleaning may not be required in many applications, contributing to efficiency and cost savings.
MULTICOMP 5071434 Flux Cored Solder Wire Specifications:
- Alloys: Conform to national and international standards
- Flux: Modified rosins and activators
- Halide Content (Typ 400): 0%
- Halide Content (Typ 505): 0.5%
- Halide Content (Typ 511): 1.1%
- Acid Value (Typ 400): 215 mg / KOH / g
- J-STD-004 Solder Spread (Typ 400): 210 mm2
- SIR Test (Typ 400): Pass
- Classification (EN 29454-1): 1.2.3
- Classification (J-STD-004): RO L0
- Classification (IPC-SF-818): LR3CN
- Oxidised Copper Spread (Typ 400): 222 mm2
- Oxidised Brass Spread (Typ 400): 209 mm2
- Flux Content: 2.2% (Typ 400), 3% (Typ 505), 3% (Typ 511)
