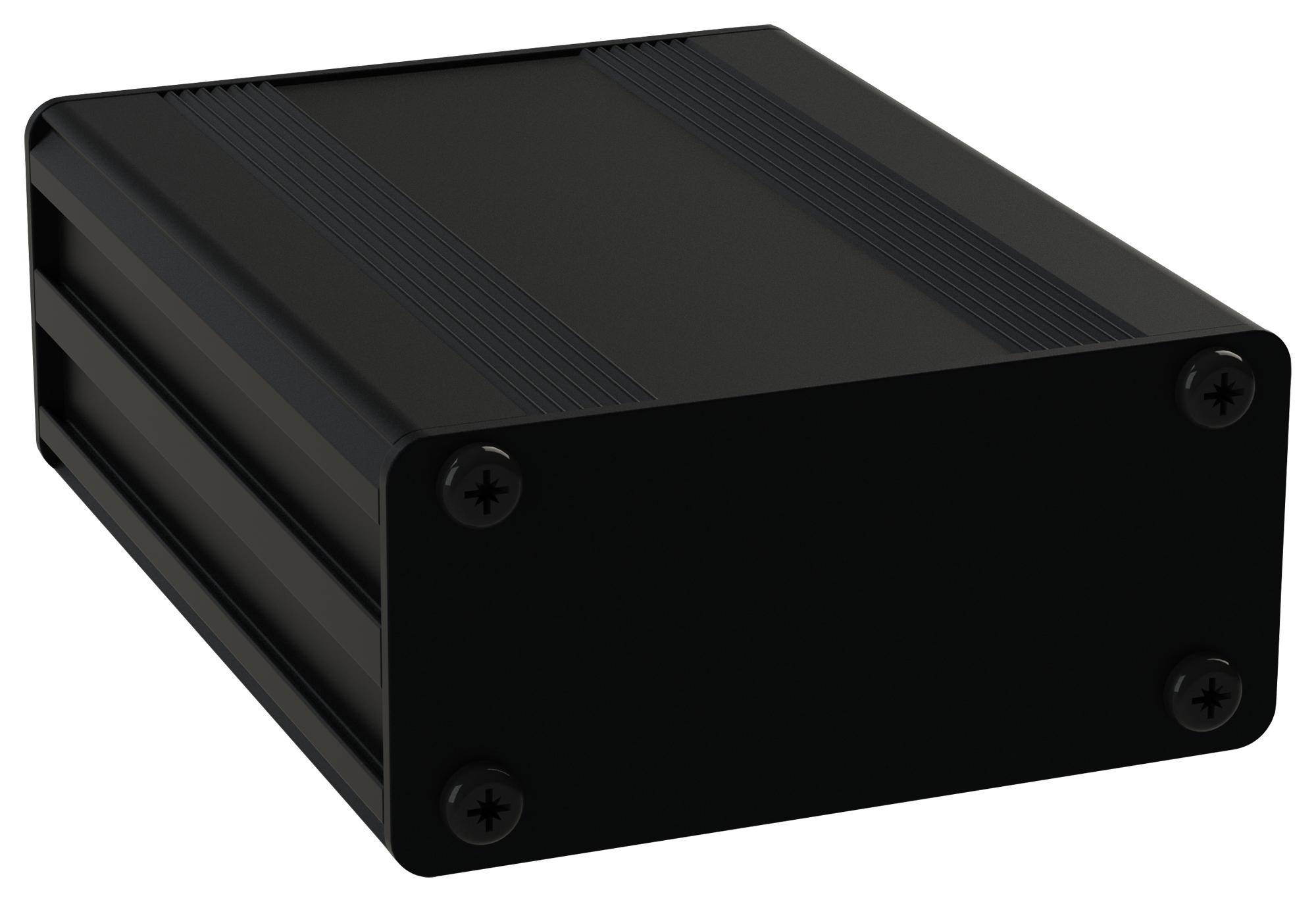

MULTICOMP MC002215 Aluminium multicomp case
This aluminium multicomp heat sink case is crafted from durable 6063 T6 aluminum with a sleek black anodized finish. Designed to accommodate circuit boards measuring 55mm x 40mm, 55mm x 80mm, or 55mm x 120mm, it is ideal for small circuits and RF amplifiers. The case features dovetail slots for surface mounting via Linc-Lug brackets, optional waterproof gaskets, and a shallow recess for labels. Its precise dimensions and screw ports support easy assembly and secure mounting, making it a reliable choice for electronic enclosures.
MULTICOMP MC002215 Aluminium multicomp case Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Black anodized 5um thickness to BS 1615
- Length Tolerance: Nominal length -0mm / +1mm
- Perimeter: 220mm outside, 217mm inside
- Weight: 2.1kg/m
- Screw ports: 2.7mm diameter, threaded M3 with thread-rolling tap
- Dimensions: 40mm x 63.5mm x 30mm (MC002215), 80mm x 63.5mm x 30mm (MC002216), 120mm x 63.5mm x 30mm (MC002217)
- Dovetail Slots: Accept Linc-Lug mounting brackets
- Optional Gaskets: Waterproofing capability
- Label recess: 0.5mm deep
- Perimeter: 220mm outside, 217mm inside
Buy the Buy Aluminium Multicomp Heat Sink Case Part Number MC002215 Online
Order the aluminium multicomp case MC002215 online today to ensure your electronic projects benefit from durable, lightweight aluminum construction with versatile mounting options, waterproof gasket compatibility, and a sleek black anodized finish. This case provides excellent thermal management, protection against environmental factors, and ease of assembly. Perfect for small circuits, RF amplifiers, and custom electronics, it guarantees a secure fit, personalized labelling space, and robust surface-mounting capabilities. Purchase now for quick delivery and professional-quality enclosures.
Buy Aluminium multicomp heat sink case MC002215 now and experience reliable thermal management and durable electronic enclosures.
