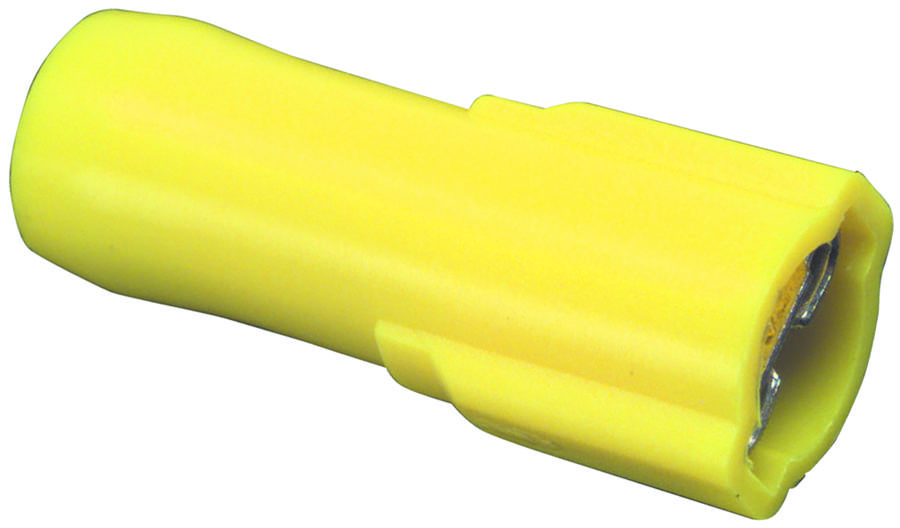

MULTICOMP CFSDF1025 Female Disconnect Terminal
These fully insulated female disconnect terminals are made from electro-tin plated copper with durable nylon 6/6 full sleeves. Designed for a voltage rating of 600 V and an operating temperature range from -40°F to 221°F (-40°C to 105°C), they provide reliable electrical connections. Compatible with male tabs, available in various sizes with specific dimensions and color codes for easy identification. Suitable for use in electrical wiring, panel assemblies, or automation systems, these terminals meet UL94V-2 flammability standards and are essential for secure, insulated electrical terminations in professional installations.
MULTICOMP CFSDF1025 Female Disconnect Terminal Specifications:
- Material: Electro-tin plated copper with Nylon 6/6 full sleeve
- Voltage Rating: 600 V
- Operating Temperature Range: -40°F to 221°F (-40°C to 105°C)
- Flammability: UL94V-2
- Dimensions vary by size: Width: 0.187 to 0.250 inches, Thickness: 0.020 to 0.032 inches, Lengths range from 0.30 to 0.37 inches
- Color Coding: Yellow, Blue, Red
- Compatible with male tab: Style 1 and Style 2
- List: UL Listed for certain sizes, CSA Certification not indicated
- Application: Electrical wiring, panel connections, automation
- Certifications: UL94V-2 flammability standard
Buy the Electro-Tin Plated Copper Series Insulated Female Disconnect Terminals: CFSDF1025
Purchase the electro-tin plated copper female disconnect terminals online today, featuring durable nylon sleeves, UL94V-2 flammability standard, and operating safely at voltages up to 600 V. These high-quality terminals are suitable for a wide range of electrical wiring and automation applications, ensuring reliable and secure connections. With sizes ranging from 12-10 AWG to 26-20 AWG, they meet strict safety and performance standards, offering excellent value for professional installers and DIY enthusiasts. Order now for fast delivery and exceptional quality.
Order your Electo-Tin Plated Copper Series CFSDF1025 female disconnect terminals today and ensure secure, insulated electrical connections for your projects.
Frequently Asked Questions
Where can I buy MULTICOMP CFSDF1025?
You can click on the BUY or RFQ button to purchase CFSDF1025 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part CFSDF1025?
You can download the CFSDF1025 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of CFSDF1025?
MULTICOMP
