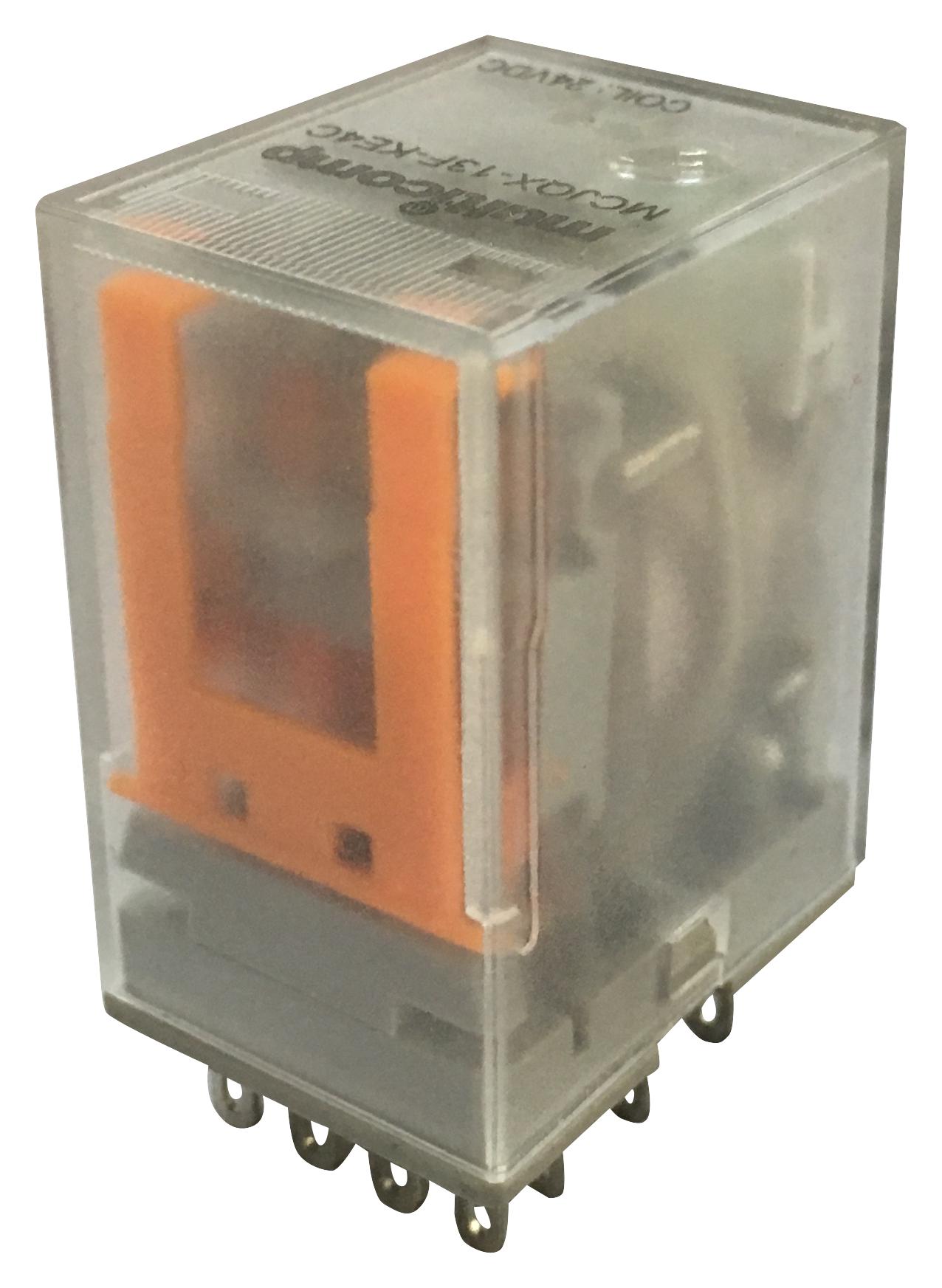

MULTICOMP MCJQX13FKE4C110VAC Power Relay with LED
This compact power relay with LED indicator offers high switching power and sensitivity, suitable for industrial automation and control systems. It features a 2C or 4C contact configuration with resistive loads up to 5A at 250V AC. The relay operates within -55°C to +70°C ambient temperature, with a maximum coil power consumption of 0.9W. Designed for reliable performance, it includes plug-in or PCB terminals, a coil resistance of 15000Ω at 230V AC, and robust insulation resistance of 2500MΩ. Ideal for industrial automation, control panels, and machinery, ensuring fast operation and durable life cycles.
MULTICOMP MCJQX13FKE4C110VAC Power Relay with LED Specifications:
- Contact Form: 2 Change or 4 Change
- Resistive Load: 5A/250V AC, 30V DC
- Rated Load: 1/2HP, 240V AC; 1/3HP, 240V AC; 1/6HP, 240V AC; 3/4HP, 120V AC
- Contact Resistance: <50mΩ
- Electrical Life: > 10^6 Cycles
- Mechanical Life: 2 x 10^7 Cycles
- Operate Voltage (at 25°C): DC:<75% Rated, AC:<80% Rated
- Release Voltage (at 25°C): DC: 210% Rated, AC: 230% Rated
- Max Allowed Voltage: 110% Rated Voltage
- Insulation Resistance: 2500MΩ (500V DC)
- Coil Power De: 0.9W
- Coil Resistance: 15000Ω (230V AC), 3750Ω (110V AC), 630Ω (24V DC)
- Operate Time: <20ms
- Release Time: <20ms
- Between Contacts Dielectric Strength: 1,000V AC/1 min
- Between Contact and Coil: 2,000V AC/1 min
- Ambient Temperature: -55°C to +70°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G
- Vibration Resistance: 10~55Hz, 1mm amplitude
- Installation: Plug-in Terminals or PCB Terminal
- Weight: 35g
Buy the Multicomp MCJQX-13F-KE4C-110VAC – Reliable Industrial Power Relay for Automation
Enhance your machinery and automation systems with the multicomp Power Relay with LED indicator, offering fast switching, high durability, and reliable operation. Suitable for various voltages including 24V, 110V, and 230V AC with 2C or 4C contact configurations, it supports resistive loads up to 5A. Easy to install with plug-in or PCB terminals, this relay is perfect for industrial control panels, automation projects, and machinery requiring dependable switching and indicator functions. Order online today for efficient automation solutions.
Buy multicomp MCJQX-13F-KE4C-110VAC now and experience unmatched reliability and performance for industrial automation control applications.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FKE4C110VAC?
You can click on the BUY or RFQ button to purchase MCJQX13FKE4C110VAC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FKE4C110VAC?
You can download the MCJQX13FKE4C110VAC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FKE4C110VAC?
MULTICOMP
