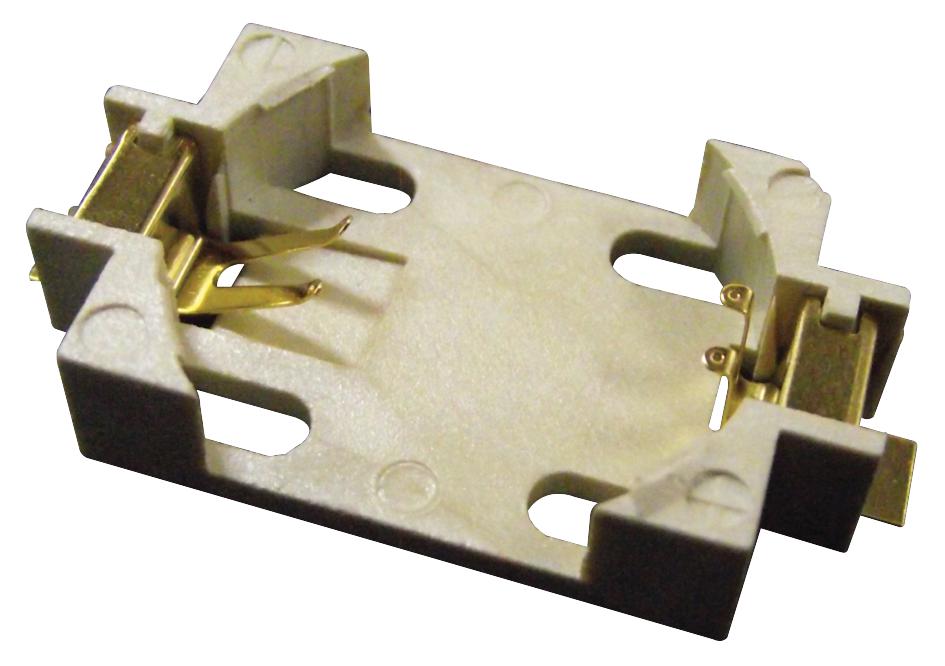

MULTICOMP CH282032LF Battery Holder
The CH28-2032LF is a 20 mm SMT battery holder designed for reliable electrical connections in electronic devices. Constructed with a white LCP housing reinforced with 30% glass fiber for durability, it features phosphor bronze contacts with gold plating over nickel for excellent conductivity. Rated for 2A AC/DC and 500V, it ensures safe and efficient operation. Its dimensions are 10.2 mm in width with a 5.75 mm fixing length, suitable for PCB mounting. It withstands temperatures from -55°C to +85°C and humidity conditions up to 96 hours at 90-95% RH, making it ideal for various electronic applications.
MULTICOMP CH282032LF Battery Holder Specifications:
- Housing: LCP + 30% GF, white color
- Contact Material: Phosphor bronze, 0.25 mm thick
- Contact Plating: Gold over Ni min. 5 p
- Current Rating: 2A AC/DC
- Voltage Rating: 500 V AC/DC
- Contact Resistance: 30 mΩ
- Insulation Resistance: 500 MΩ
- Temperature Range: -55°C to +85°C
- Humidity Resistance: 40°C at 90-95% RH for 96 hours
- Dimensions: Width 10.2 mm, Fixation length 5.75 mm
- PCB Mounting Layout: 0.3° angle, Section A-A
- Material: Compliant, RoHS
Buy the Multipack Series CH28-2032LF Battery Holder: CH28-2032LF
Order the Multipack CH28-2032LF battery holder online today and enhance your electronic assembly with a durable, high-performance component. Featuring a sturdy LCP housing with glass fiber reinforcement, it provides excellent mechanical stability. The gold-plated phosphor bronze contacts ensure optimal electrical conductivity, rated for 2A and 500V, suitable for a wide operating temperature range from -55°C to +85°C. Its compact 20 mm size makes it perfect for PCB mounting in various electronic devices, offering long-term reliability and safety in demanding environments.
Buy Multipack CH28-2032LF now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP CH282032LF?
You can click on the BUY or RFQ button to purchase CH282032LF from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part CH282032LF?
You can download the CH282032LF datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of CH282032LF?
MULTICOMP
