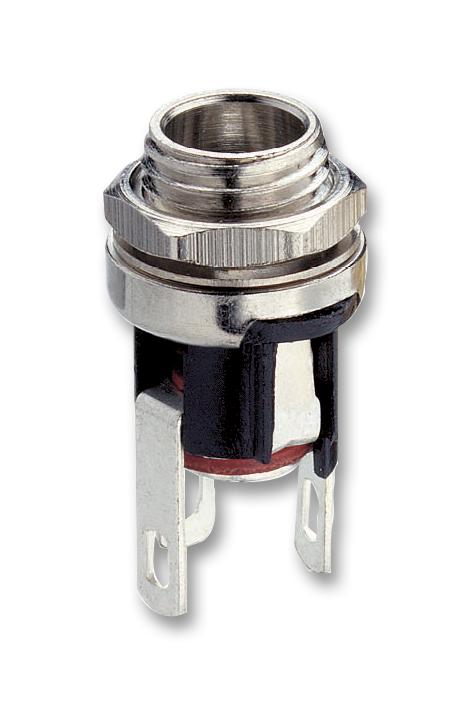

MULTICOMP JR1819ROHSPSG01769 DC Power Connector
The JR1819-ROHS (PSG01769) from Multicomp is a 2.1mm low-voltage DC chassis jack designed for reliable power connections in industrial, power management, and portable devices. Made with durable ABS insulator material, it supports a rated load of 30V 0.54A, making it suitable for low-voltage applications. Featuring robust contacts with low resistance and high insulation resistance, it withstands AC500V voltage. Its compact design ensures easy panel mounting, and it has been tested for 5,000 cycles. Ideal for secure, long-lasting power connections with high performance standards.
MULTICOMP JR1819ROHSPSG01769 DC Power Connector Specifications:
- Rated Load: 30V 0.54A
- Contact Resistance: 30mΩ
- Insulation Resistance: 2100MΩ
- Withstand Voltage: AC500V
- Insertion and Extraction Force: 3-30N
- Cycle Life: 5,000 Cycles
- Material: ABS insulator, copper, nickel-plated contacts
- Dimensions: Compact panel mount design, suitable for 2.1mm jack
- Current Rating: 0.5A
- Contact Material: Copper, Sn-Plated
- Housing Material: PBT Black
- Bushing Material: H62 Ni-Plating
- Operating Temperature Range: -20°C to +85°C
Buy the Multicomp Series DC Power Connector: JR1819-ROHS
Purchase the Multicomp JR1819-ROHS 2.1mm DC power jack online today and enjoy a high-quality, durable component perfect for industrial, portable, and power management applications. With a rated load of 30V 0.54A, it features robust copper contacts with Sn-plating, supporting high insulation resistance and withstand voltage of AC500V. Its compact panel mount design makes it ideal for easy installation in various electronic devices, ensuring secure power delivery. Get this reliable, long-lasting connector to enhance your project’s performance.
Buy Multicomp JR1819-ROHS now and experience unmatched reliability and performance with durable power connection solutions.
Frequently Asked Questions
Where can I buy MULTICOMP JR1819ROHSPSG01769?
You can click on the BUY or RFQ button to purchase JR1819ROHSPSG01769 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part JR1819ROHSPSG01769?
You can download the JR1819ROHSPSG01769 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of JR1819ROHSPSG01769?
MULTICOMP
