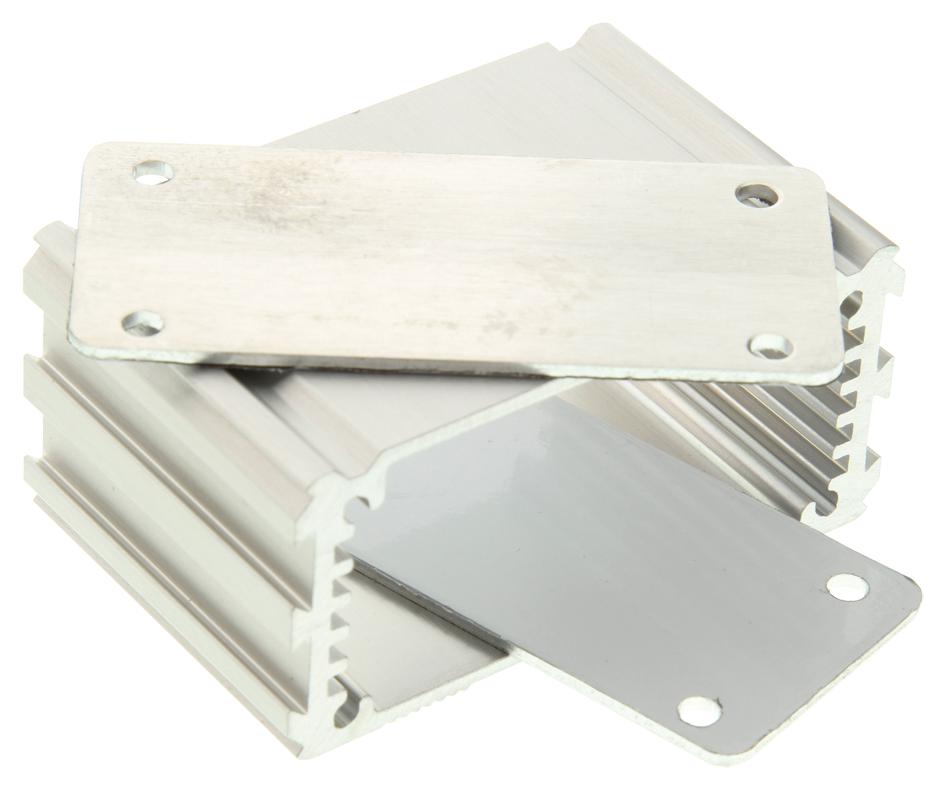

MULTICOMP MCREAS40 Aluminum Enclosure
The MCREAS40 is an aluminum extruded heat sink case with a silver anodized finish, designed for small circuits, RF amplifiers, and compact electronics. Its extruded box section accommodates 55 x 40 mm, 55 x 80 mm, or 55 x 120 mm circuit boards, making it suitable for various small-scale industrial and RF applications. The case features dovetail slots for easy surface mounting, optional waterproofing gaskets, and decorative grooves with a label recess for customization. Made from durable aluminium 6063 T6, it offers excellent thermal management, corrosion resistance, and a professional appearance for electronic enclosures.
MULTICOMP MCREAS40 Aluminum Enclosure Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Silver anodized 54 μm thickness to BS 1615
- Dimensions: Length varies, standard options 40 mm, 80 mm, 120 mm, width 63.5 mm, height 30 mm
- Perimeter: Outside 220 mm, inside 217 mm
- Screw Ports: Nominal diameter 2.7 mm, threaded M3 with thread-rolling tap
- Weight: 21 Kg/m
- Surface features: Dovetail slots, decorative grooves, label recess
- Max component height: 18-20 mm depending on orientation
- Tolerance: Length -0 mm / +1 mm
- Optional non-standard lengths available
- Finish coating: Anodized, can be painted, inside and cut ends are not anodized
Buy the Premier Farnell Series Multicomp Aluminum Enclosure: MCREAS40
Purchase the Premier Farnell Series MCREAS40 aluminum enclosure online and experience reliable protection for your small electronic circuits. Crafted from durable aluminium 6063 T6 with a silver anodized finish, this enclosure features dovetail slots for easy mounting, optional waterproof gaskets, and aesthetic grooves with a label recess. Suitable for RF amplifiers and other small electronics, it offers excellent thermal management, corrosion resistance, and versatility. Order today to get a high-quality, professional enclosure that ensures your projects are protected and nicely presented.
Order your Premier Farnell Series MCREAS40 aluminum enclosure today and secure a durable, high-quality solution for your circuit board housing needs.
Frequently Asked Questions
Where can I buy MULTICOMP MCREAS40?
You can click on the BUY or RFQ button to purchase MCREAS40 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCREAS40?
You can download the MCREAS40 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCREAS40?
MULTICOMP
