MULTICOMP LFER1025 ring terminal
Lead-Free ElektraLink ring terminals are designed for secure and reliable electrical connections, suitable for 12-10 AWG wire sizes. Crafted from copper with an electro-tin plating finish, these terminals feature a solderable design with 2-3% RMA flux coating that melts at 138°C (280°F). They are insulated with multiple wall polyolefin tubing, capable of withstanding continuous temperatures from -55°C (-67°F) to 110°C (230°F). These terminals offer tensile strength of 2,200 PSI, an ultimate elongation of 400%, and dielectric strength of 900 V/Mil, ensuring durability and performance in various electrical applications. Their non-corrosive, high-quality construction makes them ideal for industrial wiring and control systems.
MULTICOMP LFER1025 ring terminal Specifications:
- Material: Copper with electro-tin plating
- Finish: Electro-Tin Plate
- Solder Composition: 42SN/58BI with 2-3% RMA flux coating
- Melting Temperature: 138°C (280°F)
- Tubing: Multiple wall polyolefin, Shrink Temperature: 138°C (275°F)
- Operating Temperature: -55°C (-67°F) to 110°C (230°F)
- Tensile Strength: 2,200 PSI
- Ultimate Elongation: 400%
- Secant Modulus, 2%: 27,000 PSI
- Dielectric Strength: 900 V/Mil
- Volume Resistivity: 21015 Q-cm
- Water Absorption: 0.1%
- Tubing Inner Diameter: 0.255 inch (LFER-14/25), 0.227 inch (LFER-16/25)
- Stud Size: #10
- Wire Range: 12-10 AWG
- Color: Yellow (LFER-10/25), Blue (LFER-14/25), Red (LFER-16/25)

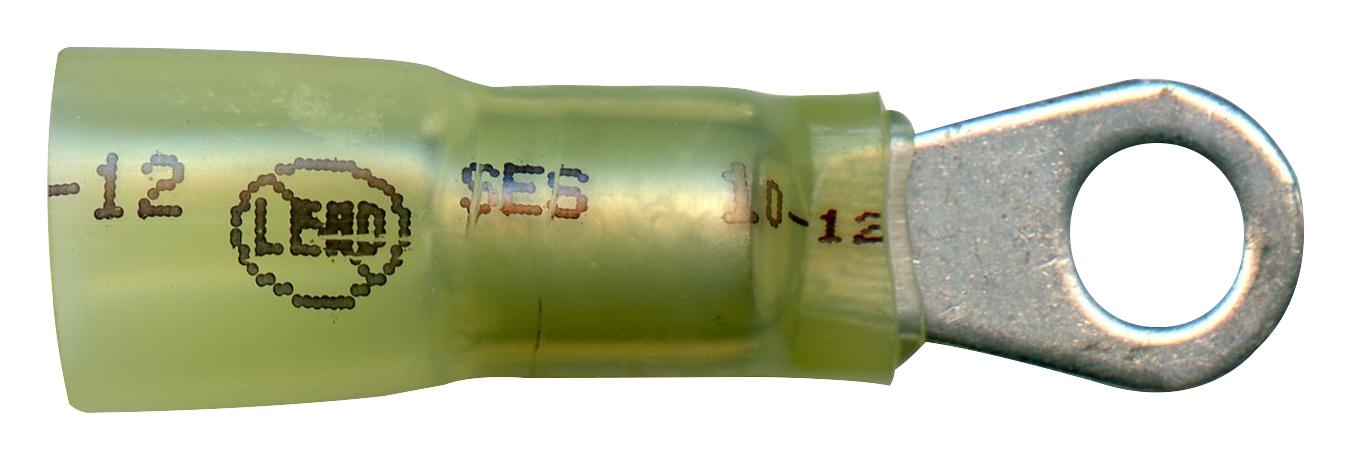

Buy the Buy ElektraLink Lead-Free Ring Terminal Part Number LFER-10/25 Online
Purchase ElektraLink lead-free ring terminals online today for secure, corrosion-resistant electrical connections. Engineered from copper with electro-tin plating, these solderable terminals withstand temperatures from -55°C to 110°C, offering high tensile strength and dielectric performance. Compatible with 12-10 AWG wires, they feature durable polyolefin tubing with precise inner diameters and flexible insulation. Ideal for industrial wiring, control panels, and automation systems, ordering online ensures quick delivery, competitive prices, and trusted quality for your electrical projects.
Buy ElektraLink LFER-10/25 now and experience unmatched reliability and high-quality performance for industrial electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP LFER1025?
You can click on the BUY or RFQ button to purchase LFER1025 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part LFER1025?
You can download the LFER1025 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of LFER1025?
MULTICOMP
