MULTICOMP MC001602 Cooling Fan

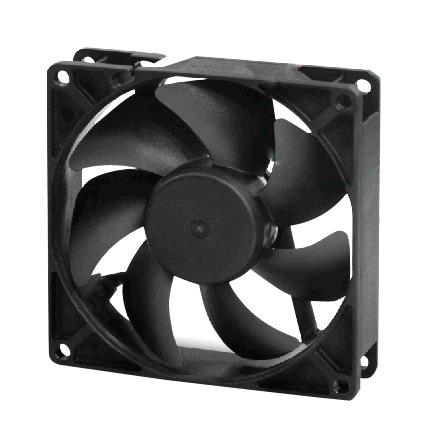

This 92mm x 92mm x 25mm brushless cooling fan from multicomp features a 4-pole single-phase motor with precision ball bearings, ensuring reliability and quiet operation. Operating within 8V to 27.6V DC, it delivers up to 51.5 CFM airflow at 3000 RPM, producing 34 dB(A) noise levels. Designed with thermoplastic PBT UL 94V-0 frame and blades, it is suitable for cooling electronics and industrial applications. The fan has a life expectancy of 70,000 hours at 40°C and includes protection features like polarity protection and automatic restart.
MULTICOMP MC001602 Cooling Fan Specifications:
- Dimensions: 92mm x 92mm x 25mm
- Rated Voltage: 8V DC to 27.6V DC
- Rated Current: 87mA / Max. 101mA
- Rated Power Consumption: 2.09 Watts / Max. 2.43 Watts
- Rated Speed: 3000 RPM +10% at rated voltage
- Air Flow: 51.5 CFM
- Static Pressure: 20.15 Inch-H2O
- Acoustic Noise: 34 dB(A)
- Material of Frame: Thermoplastic PBT UL 94V-0
- Material of fan Blade: Thermoplastic PBT UL 94V-0
- Bearing System: Precision ball bearing
- Direction of Rotation: Counter-clockwise viewed from front
- Mounting Holes: Diameter 4.3mm in 8 holes
- Weight: 199g
- Insulation Resistance: 10MQ at 500 VDC
- Dielectric Strength: 500 V for 1 minute between housing and leads
- Life Expectancy: 70,000 hours at 40°C
- Protection: Polarity protection, automatic restart
Buy the Multicomp Series Cooling Fan: 92mm x 92mm x 25mm
Enhance your electronic cooling system with the multicomp 92mm x 92mm x 25mm brushless fan, offering high airflow, low noise, and durable construction. With a rated RPM of 3000 and a lifespan of up to 70,000 hours, this fan ensures optimal thermal management for industrial, commercial, and electronic applications. Its UL-certified thermoplastic frame and precision ball bearings guarantee durability and quiet operation. Easy to install with mounting holes, it is perfect for maintaining device temperatures efficiently in demanding environments.
Buy multicomp 92mm x 92mm x 25mm brushless cooling fan now and experience unmatched reliability and performance in electronic cooling solutions.
