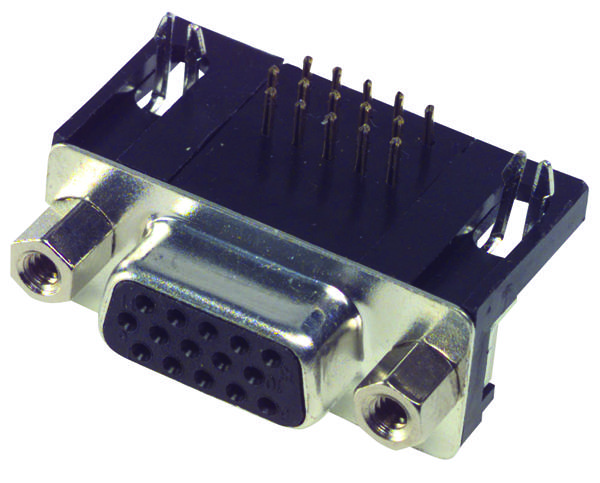

MULTICOMP SPC15430 D-sub Receptacle Connector
The SPC15430 is a 15-position high-density D-sub receptacle with a nickel-plated steel shell, featuring copper alloy contacts that are gold-plated for reliable connectivity and tin-plated dip solder tails for secure soldering. Designed for durability, it supports a current of 2A, operates at 500V DC, and has a contact resistance of 20 micro-ohms with an insulation resistance of 5000 mega-ohms. The dielectric withstand voltage is 1000VAC, and it includes a tin-plated brass board lock and a nickel-plated brass jack-screw. Suitable for computer and peripheral device connections, offering high performance and durability.
MULTICOMP SPC15430 D-sub Receptacle Connector Specifications:
- Shell: Steel, nickel-plated over copper
- Insulator: PBT + 30% fibre glass, black colour
- Contact Material: Copper alloy, gold-plated on contact area, tin-plated on dip solder tail
- Rivet: Metal, nickel-plated
- Board-lock: Brass, tin-plated
- Jack-screw: Brass, nickel-plated
- Current Rating: 2A
- Operating Voltage: 500V DC
- Maximum Contact Resistance: 20 micro-ohms
- Minimum Insulation Resistance: 5000 mega-ohms at 500V DC
- Maximum Dielectric Withstanding Voltage: 1000V AC for 1 minute
- Working Temperature: -55°C to +105°C
Buy the Farnell Series High Density D-sub Receptacle: SPC15430
Purchase the Farnell high-density D-sub receptacle SPC15430 online today for reliable, corrosion-resistant connections in your electronic projects. Featuring gold-plated copper alloy contacts and a durable nickel-plated steel shell, this connector ensures excellent electrical performance and longevity. Designed with precision for ease of mounting using a brass board lock and nickel-plated brass jack-screw, it supports 2A current and withstands voltage up to 500V DC. Ideal for computer, networking, and industrial applications where reliability and durability are essential, making it an ideal choice for professionals.
Get Farnell SPC15430 today—built for high-density PCB applications and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15430?
You can click on the BUY or RFQ button to purchase SPC15430 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15430?
You can download the SPC15430 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15430?
MULTICOMP
