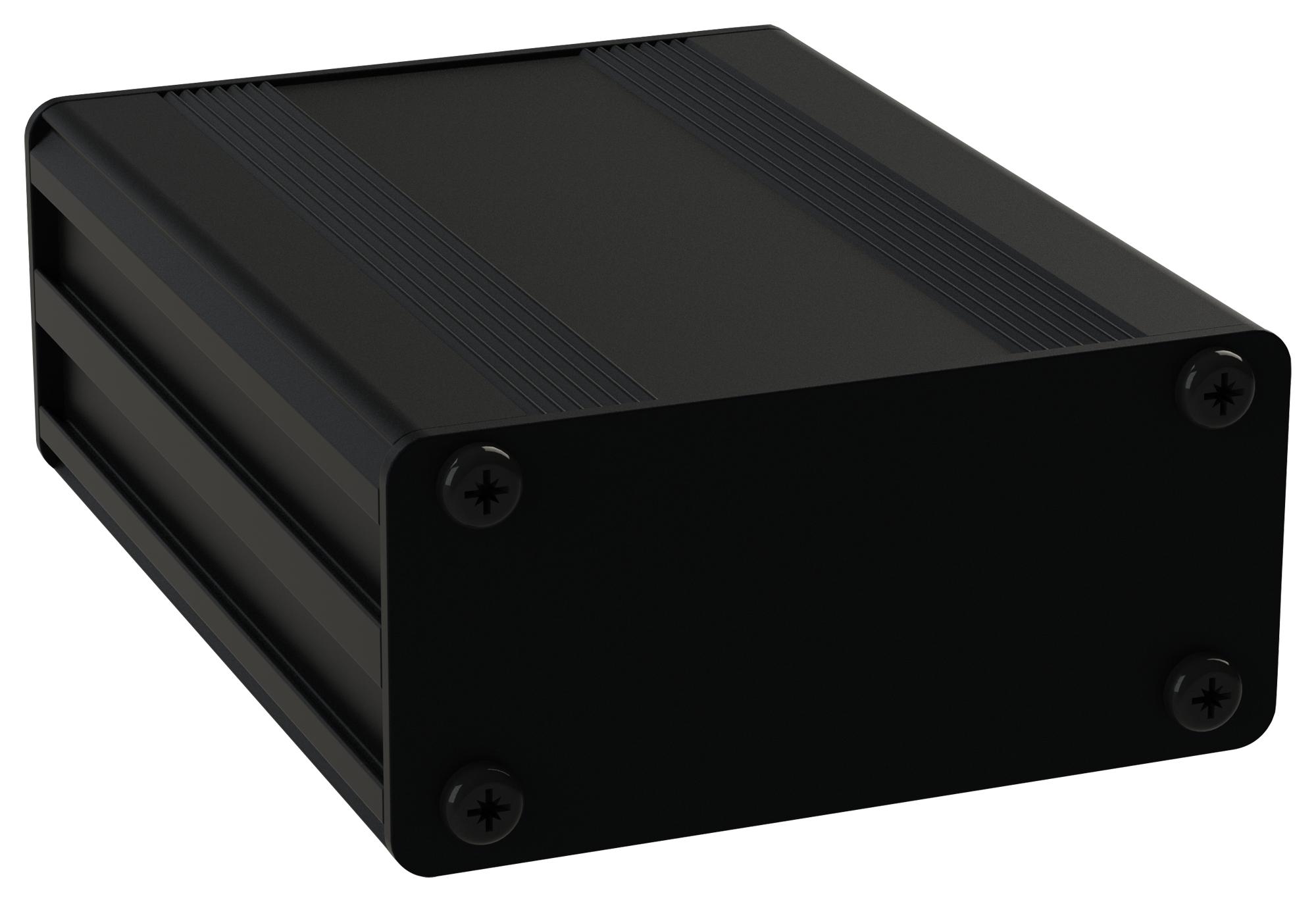

MULTICOMP MC002216 Aluminium Heat Sink Case
This aluminium extruded heat sink case is designed for small circuits and RF amplifiers, offering a black anodized finish for durability and aesthetic appeal. It accommodates circuit boards measuring 55mm x 40mm, 55mm x 80mm, or 55mm x 120mm, with a maximum component height of 18-20mm depending on orientation. Features include dovetail slots for surface mounting, optional waterproof gaskets, and decorative grooves with labeling recesses. Made from high-quality aluminium 6063 T6, the case ensures robust protection and thermal management for electronic projects.
MULTICOMP MC002216 Aluminium Heat Sink Case Specifications:
- Material: Aluminium 6063 T6
- Finish: Black anodized 5μm thickness to BS 1615
- Perimeter: 220mm outside, 217mm inside
- Length Tolerance: Nominal length -0mm / +1mm
- Screw Ports: 2.7mm diameter, threaded M3 using thread-rolling tap
- Weight: 2.1kg/m
- Case Dimensions: 40mm x 63.5mm x 30mm, 80mm x 63.5mm x 30mm, 120mm x 63.5mm x 30mm
- Dovetail Slots: Accept Linc-Lug mounting brackets
- Maximum PCB height: 18-20mm depending on orientation
- Gasket Option: Available for waterproofing
- Cut Ends: Not anodized
- Screw Compatibility: Suitable for No.4 self-tapping screws
- Perimeter: 220mm outside, 217mm inside
Buy the Aluminium Series Multicomp Heat Sink Case: MC002216
Purchase your Premier Farnell aluminium heat sink case MC002216 online today and benefit from a robust, anodized aluminium enclosure ideal for small circuits and RF amplifiers. Designed with dovetail slots for easy surface mounting and optional waterproof gaskets, this case provides excellent protection and thermal management. Made from high-grade aluminium 6063 T6, it features precise dimensions and a sleek black anodized finish that ensures durability. Perfect for electronics professionals seeking reliable, easy-to-install casing solutions.
Order your Premier Farnell Series Multicomp aluminium heat sink case MC002216 today and enhance your electronic projects with durable, high-quality enclosure solutions.
