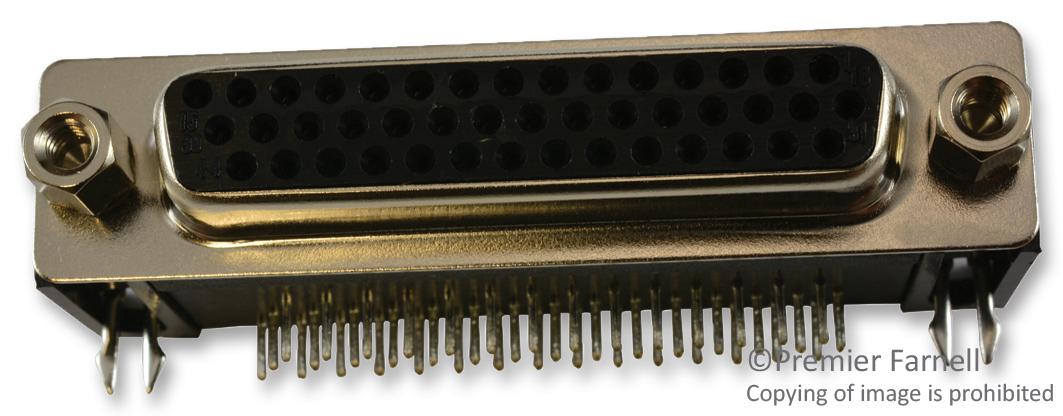

MULTICOMP SPC15324 High Density D-Sub Socket
High-density D-Sub socket with 44 contacts, designed for reliable industrial and electronic applications. Features a PCB mount right angle configuration, gold-plated contacts, and nickel-plated steel shell. Suitable for signal and power connections with a 2A current rating, operating from -55°C to +105°C. The socket provides excellent insulation resistance of 5,000MΩ at 500V DC and dielectric withstand voltage of 1,000V AC for 1 minute. Its robust construction ensures durability in demanding environments, making it ideal for complex electronic assemblies and industrial equipment.
MULTICOMP SPC15324 High Density D-Sub Socket Specifications:
- Shell Material: Steel, Nickel-Plated Over Copper
- Insulator Material: PBT + 30% Fibre Glass, Black Color
- Contact Material: Copper Alloy, Gold-Plated
- Rivet Material: Metal, Nickel-Plated
- Board-Lock Material: Brass, Tin-Plated
- Jack-Screw Material: Brass, Nickel-Plated
- Current Rating: 2A
- Min. Insulation Resistance: 5,000MO. at 500V DC
- Min. Dielectric Withstanding Voltage: 1,000V AC for 1 minute
- Max. Contact Resistance: 20mΩ
- Working Temperature: -55°C to +105°C
- Number of Contacts: 44
- Dimensions: Millimetres (Inches): 47.04 x 20.13 (1.852 x 0.79), 53.04 x 20.13 (2.088 x 0.79)
- Certification: RoHS Compliant
Buy the Multicomp SPC15324 – Reliable D-Sub Connector for Industrial Applications
Purchase the Multicomp High Density D-Sub Socket SPC15324 online today to ensure reliable connections in industrial electronics. Designed for PCB mounting with 44 contacts and a 2A current rating, this socket features gold-plated contacts and a durable nickel-plated steel shell for enhanced longevity. Its operating temperature range of -55°C to +105°C and high insulation resistance of 5,000MΩ make it ideal for demanding environments. Simplify your assembly process by ordering this precision-made connector directly from our online store and upgrade your electronic systems today.
Order your Multicomp Series SPC15324 high-density D-Sub socket today and ensure dependable, robust connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15324?
You can click on the BUY or RFQ button to purchase SPC15324 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15324?
You can download the SPC15324 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15324?
MULTICOMP
