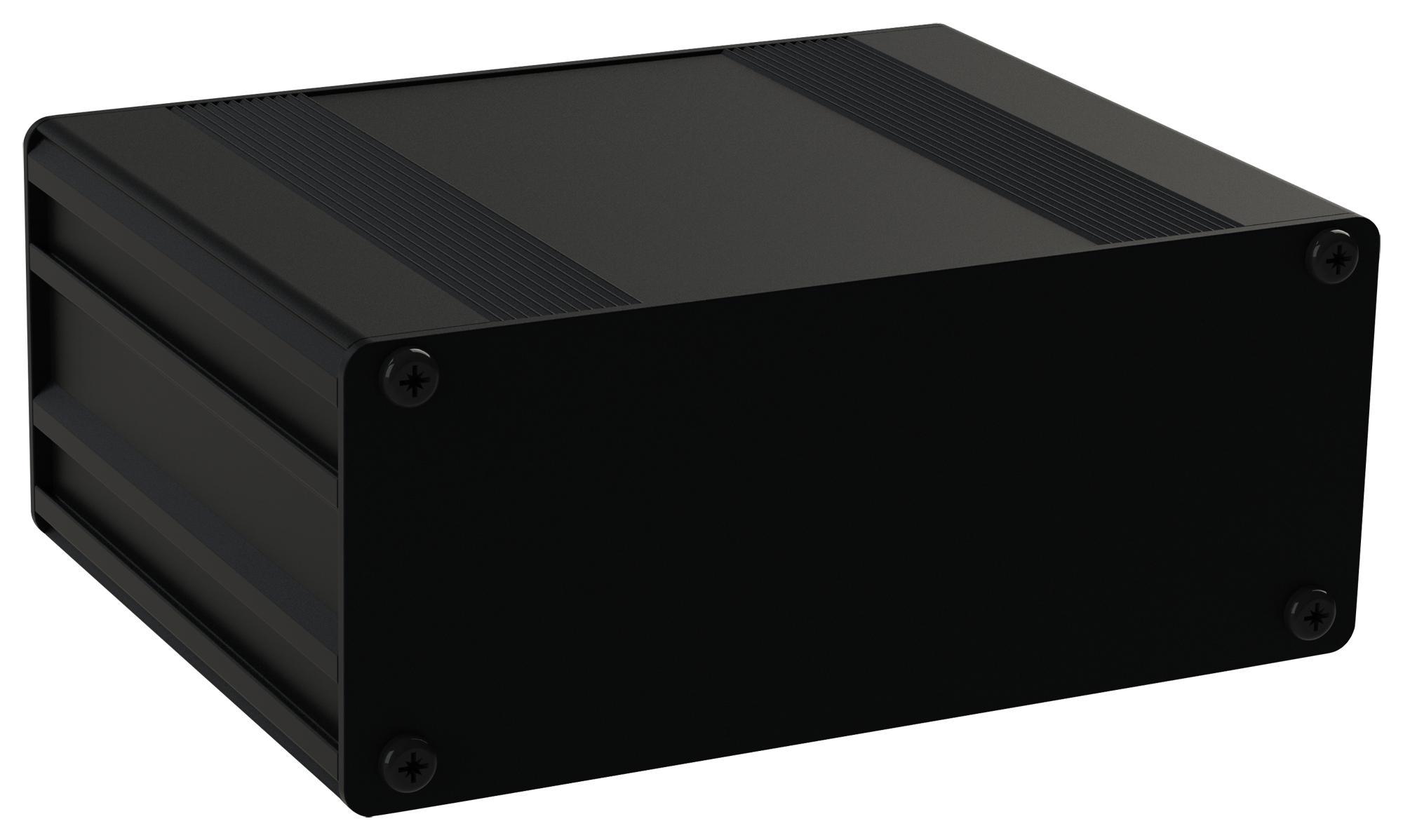

MULTICOMP MC002222 Electronic Enclosure
This black anodized aluminium enclosure is designed for compact electronic circuit boards with dimensions of 160mm x 108.5mm x 45mm. Made from durable 6063 T6 aluminium, it features dovetail slots for mounting brackets and decorative grooves on one side with a label recess. The enclosure provides a sturdy protective case suitable for various control and electronic applications. Its surface finish enhances aesthetics, making it ideal for industrial and commercial electronics projects requiring reliable housing with easy mounting options and corrosion resistance.
MULTICOMP MC002222 Electronic Enclosure Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Black Anodized 20um Thickness
- Dimensions: 160mm x 108.5mm x 45mm
- Screw ports: Nominal diameter 2.7mm for No.4 self-tapping screws, suitable for M3 threading with thread-rolling tap or M3 thread-forming screw
- Dovetail slots: Compatible with Linc-Lug mounting brackets
- Maximum component height in bottom slot: 33mm
- Groove features: Two sets of appearance-enhancing grooves with a shallow recess for labels
- Corner design: Rounded with protective anodized coating
- Intended Use: Housing for control circuitry and electronic components, suitable for industrial applications
Buy the Buy Premier Farnell Electronic Enclosure Part Number MC002222 Online
Purchase the Premier Farnell MC002222 aluminium electronic enclosure online today. Crafted from durable 6063 T6 aluminium with a sleek black anodized finish, this enclosure offers excellent corrosion resistance and a professional look. Its spacious interior measures 160mm x 108.5mm x 45mm, making it ideal for various control systems and electronic devices. The enclosure features dovetail slots for easy mounting, decorative grooves, and labeling recesses, providing an all-in-one solution for reliable and protected electronic circuitry in industrial or commercial settings. Order now for superior build quality and quick delivery.
Get Premier Farnell MC002222 today—designed for industrial electronics with corrosion-resistant black anodized surface and versatile mounting options.
Frequently Asked Questions
Where can I buy MULTICOMP MC002222?
You can click on the BUY or RFQ button to purchase MC002222 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002222?
You can download the MC002222 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002222?
MULTICOMP
