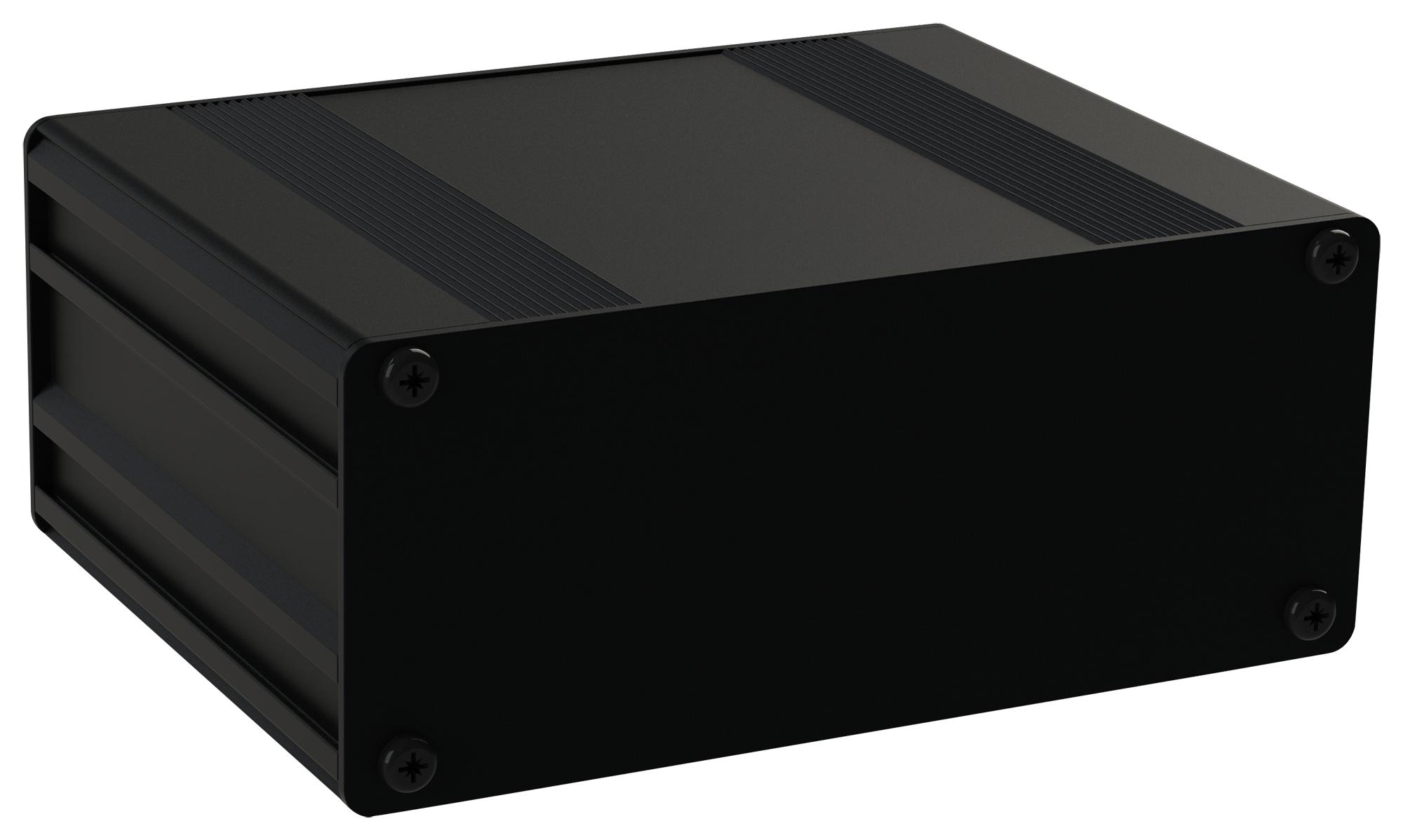

MULTICOMP MC002223 Aluminium Electronic Enclosure
This black anodized aluminium electronic enclosure, available in three sizes, provides durable protection for circuit boards. Made from aluminium 6063 T6, it features dovetail slots for mounting and grooves for an enhanced appearance. The enclosure's dimensions vary from 80mm to 220mm in length, all with a height of 45mm and a width of 108.5mm. It includes threaded screw ports compatible with M3 threads, suitable for self-tapping or thread-forming screws. Ideal for industrial and electronic projects requiring corrosion-resistant enclosures with easy mounting options.
MULTICOMP MC002223 Aluminium Electronic Enclosure Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Black Anodized 20um Thickness
- Dimensions: 80mm x 108.5mm x 45mm / 160mm x 108.5mm x 45mm / 220mm x 108.5mm x 45mm
- Screw Ports: Nominal diameter 2.7mm, threaded M3 compatible, suitable for self-tapping or threaded screws
- Dovetail slots for mounting brackets
- Maximum component height on bottom slot: 33mm
- Side grooves for appearance enhancement
- Material is corrosion-resistant and suitable for industrial environments
- Made from aluminium 6063 T6, known for strength and lightweight features.
- Finish with anodized coating for durability and aesthetics.
Buy the Premier Series Electronic Enclosure: MC002223
Order the Premier aluminium electronic enclosure MC002223 online today and ensure durable, corrosion-resistant protection for your electronic components. These enclosures feature a robust black anodized finish, precise dimensions of 220mm x 108.5mm x 45mm, and integrated dovetail slots for easy mounting. Suitable for industrial applications, they incorporate M3 screw ports compatible with self-tapping or thread-forming screws. Their lightweight yet strong aluminium alloy offers excellent durability. Protect your sensitive circuitry in style and longevity by purchasing this versatile enclosure now, enhancing your project’s reliability.
Buy Premier aluminium electronic enclosure MC002223 now and enjoy reliable, corrosion-resistant protection for your circuit boards.
