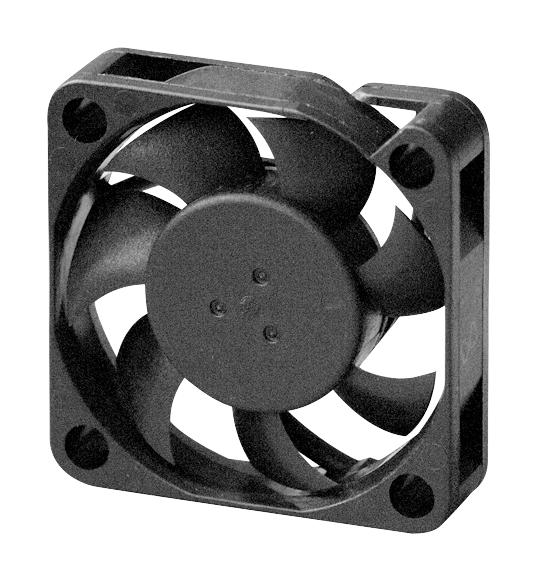

MULTICOMP MC002684 40mm DC Axial Fan
The 40mm multicomp DC axial fan is a compact, efficient cooling solution designed for electronics and industrial applications. Operating at 5V DC with a maximum current of 109mA, it delivers 7 CFM airflow and a static pressure of 0.12 Inch-H₂O. Built with UL 94V-0 thermoplastic materials, it features a Vapo bearing and a lifespan of approximately 60,000 hours. Its quiet operation at 20.6dB and automatic restart feature ensure reliable cooling performance in various environments. Suitable for systems requiring compact, low-noise fans with long life expectancy.
MULTICOMP MC002684 40mm DC Axial Fan Specifications:
- Rated Voltage: 5V DC
- Rated Current: 94mA / Max. 109mA
- Rated Power Consumption: 0.47W / Max. 0.55W
- Operating Voltage Range: 3.5 to 6V DC
- Starting Voltage: 3.5V DC
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Motor Design: Single Phase, 4-Pole Brushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Rotation Direction: Counter-Clockwise (viewed from front)
- Mounting Holes: 4.3mm Diameter, 4 Holes
- Weight: 15.6g
- Rated Speed: 5,800RPM +15%
- Air Flow: 7CFM
- Static Pressure: 0.12 Inch-H₂O
- Acoustic Noise: 20.6dB(A)
- Insulation Class: UL Class A
- Insulation Resistance: 10MQ @ 500V DC
- Life Expectancy: 60,000 Hours @ 40°C, 65% Humidity
Buy the Buy Premier Farnell DC Axial Fan Part Number MC002684 Online
Enhance your electronics cooling with this compact 40mm DC axial fan, rated at 5V DC with 7 CFM airflow and minimal noise of 20.6dB. Built with UL-rated thermoplastic materials, it features a Vapo bearing for smooth operation and durability, ensuring a lifespan of approximately 60,000 hours under continuous use. Its automatic restart function provides added reliability, especially in busy systems. Easy to install with four mounting holes, this fan combines compact size, low power consumption, and high performance for various industrial and electronic cooling applications.
Order your Premier Farnell SeriesMC002684 40mm DC axial fan today and enjoy reliable cooling with long lifespan, low noise, and efficient airflow.
