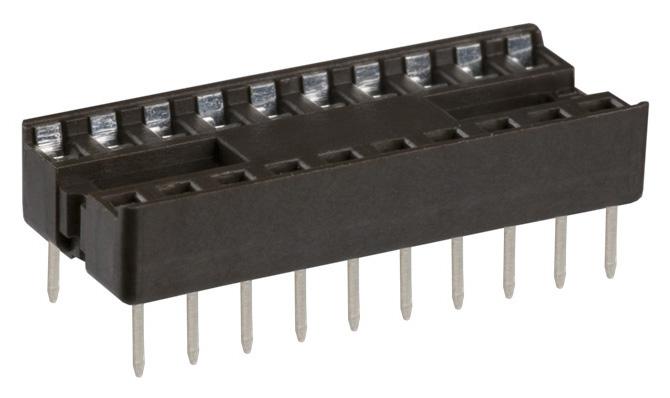

MULTICOMP SPC22186 DIP IC Socket
The SPC22186 is a DIP IC socket featuring solder tails and dual leaf edge wipe contacts, designed to accommodate DIP packages with 0.100 inch (2.54 mm) center spacing. It is constructed with gold-plated phosphor bronze contacts and housed in a black glass-filled polyester insulator. This socket offers a 1A current rating, excellent insulation resistance greater than 5000 megaohms, and a typical contact resistance of 10 milliohms, with a maximum of 30 milliohms. It operates within a temperature range of -65°C to 125°C and complies with UL94V-0 flammability standards. Suitable for industrial applications, it is part of a product line rated highly by users and comes with a 12-month limited warranty.
MULTICOMP SPC22186 DIP IC Socket Specifications:
- Environmental: Temperature Range: -65°C to +125°C
- Mechanical: Insulator Material: Glass filled polyester, UL94V-0; Contact Material: Phosphor Bronze; Contact Plating: 10m" gold
- Contact Insertion Force: 6.2 oz (1.7 N) Typ; 10.6 oz (2.9 N) Max measured with .020 (0.51) dia pin
- Contact Extraction Force: 1.8 oz (0.5 N) Typ; 0.7 oz (0.2 N) Min measured with .0145 (0.37) dia pin
- Recommended Mating Pin Size: .022, Min: .010 (0.25) x .008 (0.20) Min
- Electrical: Current Rating: 1 Amp; Voltage Rating: 300 Vrms; Dielectric Withstanding Voltage: 500 Vrms Min; Insulation Resistance: >5000 Megohms
- Contact Resistance: 10 Milliohms Typ, Max: 30 Milliohms
Buy the SPC Series DIP Socket: Solder Tails and Gold- plated Contacts: SPC22186
Order the SPC22186 DIP IC socket online today and enjoy fast delivery, trusted quality, and a perfect fit for your DIP packages with 2.54mm spacing. Designed for high reliability, it features solder tails, gold-plated contacts for corrosion resistance, and dual leaf edge wipe design to ensure secure connections. Operating from -65°C to 125°C, this socket is ideal for industrial, consumer, and electronics projects requiring robust, long-lasting performance. Purchase now to enhance your electronic assembly setup and ensure dependable operation.
Buy SPC Series SPC22186 socket now and experience reliable connections and excellent durability for your DIP package applications.
Frequently Asked Questions
Where can I buy MULTICOMP SPC22186?
You can click on the BUY or RFQ button to purchase SPC22186 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC22186?
You can download the SPC22186 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC22186?
MULTICOMP
