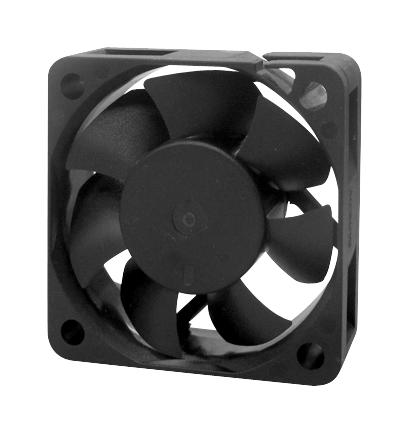

MULTICOMP MC002697 axial fan
This 50mm x 50mm x 15mm axial fan operates on 12V DC, delivering an airflow of 17 CFM with a noise level of 33 dB. Featuring a rugged thermoplastic frame and blade material compliant with UL 94V-0 standards, it has a rated speed of 6100 RPM. Designed with a Vapo bearing system and a single-phase, 4-pole brushless motor, it offers reliable performance with an operational temperature range of -10°C to +70°C. Suitable for cooling applications in electronic equipment, it also has safety features like automatic restart and polarity protection, ensuring durability up to 60,000 hours.
MULTICOMP MC002697 axial fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 72mA | Max. 83mA
- Rated Power Consumption: 0.87W / Max. 1W
- Safety Power Consumption: 0.92W
- Operating Voltage Range: 4.5 to 13.8V DC
- Starting Voltage: 4.5V DC
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Motor Design: Single Phase, 4-Pole Brushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Rotation Direction: Counter-Clockwise (from front)
- Mounting Holes: 4 holes, 4.3mm diameter
- Weight: 33g
- Rated Speed: 6100 RPM ±15%
- Air Flow: 17.0 CFM
- Static Pressure: 0.23 Inch-H2O
- Acoustic Noise: 33 dB(A)
- Insulation Resistance: 10 MΩ @ 500V DC
- Dielectric Strength: 500V AC for 1 min or 600V AC for 2 sec
- Life Expectancy: 60,000 hours at 40°C, 65% humidity
- Protection: Automatic restart, Polarity protection
Buy the Multicomp Series 50mm Axial Fan: MC002697
Get your 12V DC 50mm axial fan from Multicomp online today and experience superior cooling performance. With a compact size, low noise level of 33 dB, and a lifespan of 60,000 hours, this fan is ideal for electronics cooling, server racks, and other applications. Easy to install with four mounting holes, it delivers a flow rate of 17 CFM at a speed of 6100 RPM. Purchase now to secure fast delivery and dependable quality for your technical needs.
Order your Multicomp Series 50mm Axial Fan today and ensure effective cooling with reliable, quiet operation for your electronic projects.
