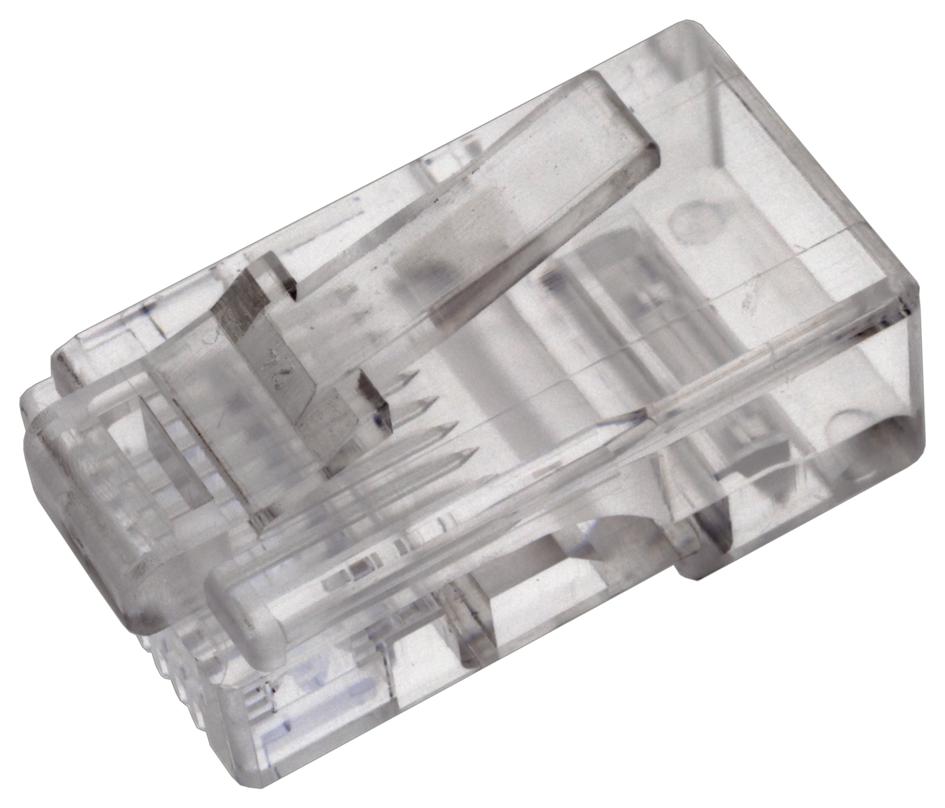

MULTICOMP MTP88U RJ45 Modular Plug
The MTP-88-U is a modular RJ45 plug designed for reliable communication and networking connections. Crafted with a clear polycarbonate insulator and phosphor bronze contacts plated with 15 micro-inch gold over nickel, it ensures durability and excellent conductivity. Supporting up to 150V AC and 1.5A current, it offers low contact resistance of 20 milliohms and insulation resistance of 500 megaohms. It withstands dielectric voltage of 1000VAC for one minute and operates effectively within -40°C to +70°C. This RoHS-compliant, lead-free plug is ideal for professional networking setups and system integration purposes.
MULTICOMP MTP88U RJ45 Modular Plug Specifications:
- Material: Polycarbonate insulator, Phosphor Bronze contacts
- Contact Plating: 15u" Gold over Nickel
- Operating Voltage: 150V AC Max.
- Current Rating: 1.5A Max.
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 500MΩ Min. @ 500V DC
- Dielectric Withstanding Voltage: 1,000V AC for 1 minute
- Operating Temperature: -40°C to +70°C
- RoHS compliant, lead free
- Dimensions: Inches (Millimetres) 0.022 [0.56], 0.040 [1.02], 3.25 [8.00], 6.10 [128]
- Certifications: Compliant with industry standards
Buy the Buy Multicomp RJ45 Plug Part Number MTP88-U Online
Enhance your networking setup with the reliable MTP-88-U modular RJ45 plug. Featuring a robust polycarbonate insulator and gold-plated contacts, it supports up to 150V AC and 1.5A, offering optimal performance for communication applications. Its dielectric voltage withstands 1000VAC for one minute, with excellent insulation resistance. Suitable for professional environments, it’s RoHS compliant and lead-free. Easy to install and highly durable, this plug ensures secure connections and long-lasting service for your network infrastructure. Shop online today for fast delivery.
Buy Multicomp MTP88-U now and experience high-quality networking connectivity with durable, RoHS-compliant modular plugs.
Frequently Asked Questions
Where can I buy MULTICOMP MTP88U?
You can click on the BUY or RFQ button to purchase MTP88U from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MTP88U?
You can download the MTP88U datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MTP88U?
MULTICOMP
