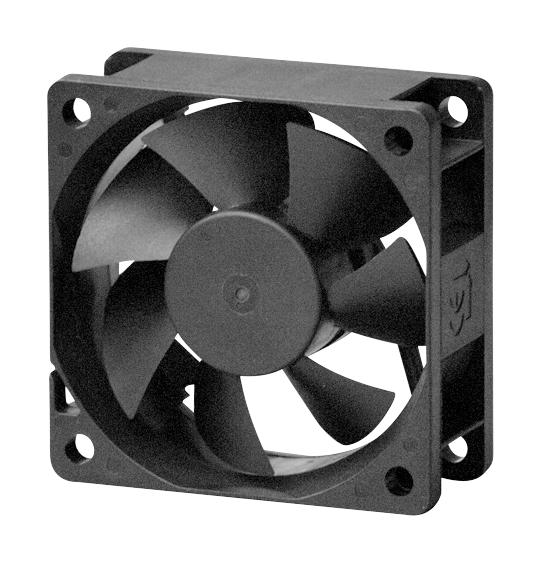

MULTICOMP MC002707 DC Axial Fan
The multicomp 60mm x 60mm x 25mm DC axial fan operates at 24V DC with a rated power consumption of 0.72W, achieving a speed of 3800RPM. Designed with a Vapo bearing system, it provides reliable airflow of 19.3 CFM and static pressure of 0.15 Inch-H2O. Its thermoplastic PBT frame and blades feature UL 94V-0 flammability ratings. The fan includes four mounting holes, weighs 45g, and is suitable for a wide temperature range from -10°C to +70°C. It incorporates safety features like automatic restart and polarity protection for durability in industrial applications.
MULTICOMP MC002707 DC Axial Fan Specifications:
- Rated Voltage: 24V DC
- Rated Current: 30mA / Max. 38mA
- Rated Power Consumption: 0.72W / Max. 0.92W
- Power Connection Type: #26AWG - 2 Lead Wires (Red +, Black -)
- Frame Material: Thermoplastic PBT, UL 94V-0
- Fan Blade Material: Thermoplastic PBT, UL 94V-0
- Motor Design: Single Phase, 4-Pole Bushless DC Motor
- Bearing System: Vapo Bearing
- Rotation Direction: Counter-Clockwise (viewed from front)
- Dimensions: 60mm x 60mm x 25mm
- Mounting Holes: 4.3mm Diameter, 8 Holes
- Weight: 45g
- Rated Speed: 3800RPM ±15%
- Air Flow: 19.3 CFM
- Static Pressure: 0.15 Inch-H2O
- Acoustic Noise: 22.0 dB (A)
- Insulation Resistance: 10MQ @ 500V DC
- Dielectric Strength: 500V AC for 1 min or 600V AC for 2 sec
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Life Expectancy: 60,000 hours at 40°C, 65% humidity
- Protection: Automatic Restart, Polarity Protection
- Insulation Class: UL Class A
Buy the Multicomp MC002707 – Reliable Cooling Fan for Industrial Applications
Enhance your industrial cooling solutions with the multicomp 60mm x 60mm DC axial fan. Operating at 24V DC, it offers high efficiency with 19.3 CFM airflow and a noise level of just 22dB. Its robust thermoplastic frame ensures durability, while features like automatic restart and polarity protection guarantee safe operation. Easy to install with four mounting holes, this fan is suitable for a wide temperature range from -10°C to +70°C. Perfect for electronics cooling, ventilation, and industrial equipment, ensuring reliable performance in demanding environments.
Buy multicomp MC002707 now and experience unmatched reliability and performance in cooling systems.
Frequently Asked Questions
Where can I buy MULTICOMP MC002707?
You can click on the BUY or RFQ button to purchase MC002707 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002707?
You can download the MC002707 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002707?
MULTICOMP
