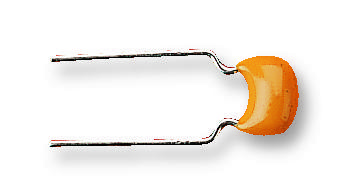

MULTICOMP MCRR50105X7RK0050 Multilayer Ceramic Capacitor
The Multicomp MCRR series capacitors are cost-effective, radially leaded multilayer ceramic capacitors (MLCC) featuring X7R dielectric material. These capacitors consist of conductive materials and electrodes with high density and efficiency, suitable for various applications. They provide high reliability and performance, with capacitance values ranging from 1000 pF (1 nF) to 1 µF. Rated voltages include 50V DC, 63V DC, and 100V DC, with tolerances of ±5%, ±10%, and ±20%. Known for their stability and low loss, these capacitors are ideal for tuned circuits and filters requiring consistent performance.
MULTICOMP MCRR50105X7RK0050 Multilayer Ceramic Capacitor Specifications:
- Size and Capacitance: Height 3.81 mm / 7.62 mm, Width 3.81 mm / 5.08 mm, Depth 2.54 mm / 3.18 mm, Lead Spacing 2.54 mm / 5.08 mm, Lead Diameter 0.508 mm, Capacitance from 1000 pF (1 nF) to 1,000,000 pF (1 µF).
- Dielectrics: X7R dielectric for stable capacitance in varied temperature ranges, Z5U dielectric for coupling and decoupling applications, COG (NPO) dielectric for low loss stability.
- Voltage Ratings: 50V, 63V, and 100V DC ratings depending on model, with tolerances of ±5%, ±10%, and ±20%.
- Construction: Radial leaded multilayer ceramic design with epoxy case material, solderable leads, lead pitch 2.54 mm or 5.08 mm, lead diameter 0.508 mm.
- Features: High density, high reliability, suitable for tuned circuits, filters, coupling, and decoupling applications, stability over temperature, compact size.
Buy the Multicomp Series MCRR X7R Capacitors: MCRR50105X7RK0050
Order the Multicomp MCRR series multilayer ceramic capacitors online today to enjoy superior reliability, stability, and efficiency for your electronic applications. Designed with high quality dielectric materials like X7R, Z5U, and COG (NPO), these capacitors deliver excellent performance in filters, tuned circuits, coupling, and decoupling tasks. With various voltage ratings and capacitance values from 1000 pF to 1,000,000 pF, they are ideal for compact, high-performance electronic designs. Purchase now and enhance your project’s performance with proven, durable components.
Buy Multicomp MCRR50105X7RK0050 high reliability multilayer ceramic capacitor now and experience unmatched performance and stability in your circuits.
