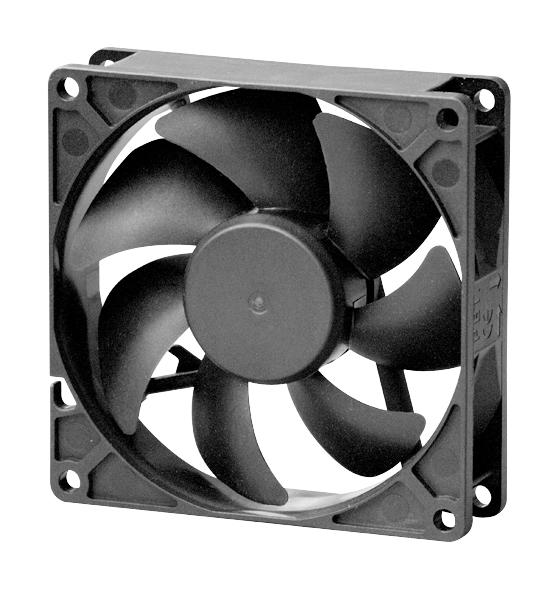

MULTICOMP MC002714 DC Axial Fan
This 92mm x 92mm x 25mm multicomp DC axial fan is designed for reliable cooling in electronic devices and industrial applications. It operates on 24V DC with a rated current of 55mA and power consumption of 1.32W, offering airflow of 45 CFM and noise level of 32 dB. The fan features a Vapo bearing system, thermoplastic PBT frame and blades, and a maximum operational life of 60,000 hours. Suitable for applications requiring efficient airflow, static pressure of 0.13 inch-H2O, and automatic restart and polarity protection.
MULTICOMP MC002714 DC Axial Fan Specifications:
- Size: 92mm x 92mm x 25mm
- Rated Voltage: 24V DC
- Rated Current: 55mA / Max. 64mA
- Rated Power Consumption: 1.32W / Max. 1.54W
- Operating Voltage Range: 8 to 27.6VDC
- Starting Voltage: 8V DC
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Motor Type: Single Phase, 4-Pole Bushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT
- Rotation Direction: Counter-Clockwise (viewed from front)
- Mounting Holes: 4.3mm Diameter, 8 Holes
- Weight: 92g
- Rated Speed: 2700RPM ±10%
- Air Flow: 45 CFM
- Static Pressure: 0.13 Inch-H2O
- Acoustic Noise: 32 dB (A)
- Insulation Class: UL Class A
- Life Expectancy: 60,000 Hours @ 40°C, 65% Humidity, 90% CL
- Protection Features: Automatic Restart, Polarity Protection, Dielectric Strength between housing & lead wire
- Certifications: RoHS Compliant
Buy the Multicomp 92mm – Reliable Cooling Fan for Industrial Applications
Purchase the multicomp 92mm axial fan now and benefit from dependable cooling performance. Designed for industrial and electronic applications, this fan offers 45 CFM airflow at a quiet 32 dB noise level. Its durable Vapo bearing system and UL-rated thermoplastic frame ensure long-lasting operation up to 60,000 hours. Operates on 24V DC with a wide voltage range, providing automatic restart, polarity protection, and efficient static pressure. Ideal for engineers and technicians seeking quality cooling solutions with fast online ordering.
Order your multicomp 92mm axial fan today and ensure reliable cooling with quiet, efficient airflow for your electronics and industrial projects.
