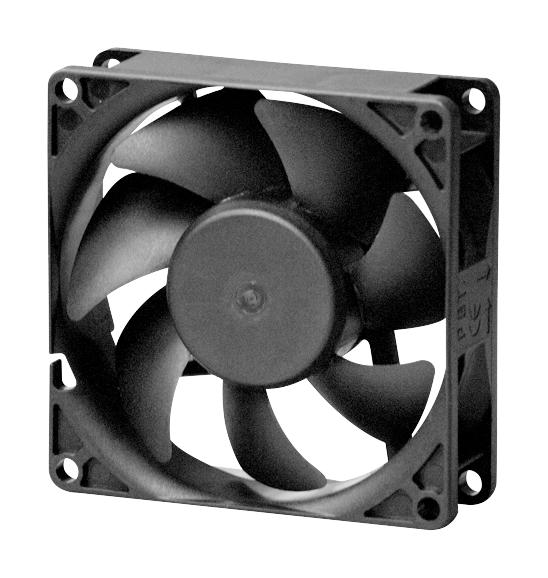

MULTICOMP MC002716 Axial Fan
This 80mm x 80mm x 25mm multicomp DC axial fan operates at 12V DC with a maximum current of 357mA and power consumption up to 4.29W. Featuring a Vapo bearing system and a single-phase, 4-pole brushless motor, it provides an airflow of 60 CFM and static pressure of 0.41 inch-H₂O. Designed with UL 94V-0 thermoplastic frame and blades, it runs at 4800 RPM and has an estimated life of 60,000 hours. Its features include polarity protection, automatic restart, and thermal cut-off for durability in cooling applications.
MULTICOMP MC002716 Axial Fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 310mA / Max. 357mA
- Rated Power Consumption: 3.72W / Max. 4.29W
- Operating Voltage Range: 6 to 13.8V DC
- Starting Voltage: 6V DC at 25°C
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Motor Design: Single Phase, 4-Pole Bushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: UL 94V-0 thermoplastic PBT
- Fan Blade Material: Thermoplastic PBT
- Rated Speed: 4800 RPM ±10%
- Air Flow: 60 CFM
- Static Pressure: 0.41 inch-H₂O
- Acoustic Noise: 44.7 dB(A)
- Insulation Class: UL Class A
- Estimated Life: 60,000 hours at 40°C and 65% humidity
- Mounting Holes: 4.3mm diameter, 8 holes
- Weight: 91 grams
Buy the Multicomp Series Axial Fan: MC002716
Experience efficient cooling with this 80mm multicomp axial fan designed for electronics and industrial systems. Operating at 12V DC with airflow of 60 CFM, it features durable Vapo bearings, UL 94V-0 thermoplastic construction, and a noise level of 44.7 dB(A). Its compact design, automatic restart, and thermal protection ensure reliable operation over 60,000 hours. Perfect for enclosures, HVAC, and cooling applications, this fan guarantees performance, durability, and quiet operation, readily available online for convenient procurement.
Get multicomp MC002716 today—built for reliable cooling in electronics and industrial equipment with quiet operation and long-lasting performance.
Frequently Asked Questions
Where can I buy MULTICOMP MC002716?
You can click on the BUY or RFQ button to purchase MC002716 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002716?
You can download the MC002716 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002716?
MULTICOMP
