MULTICOMP MC002809 USB Type C Receptacle
This USB 3.1 Type C Receptacle features a vertical SMT mount with an 8.9mm height, designed for high-density connection applications. It supports 24 contacts and complies with RoHS standards, ensuring environmental safety. Made with high-temperature plastic insulators and stainless steel shells with nickel plating, it provides durability and corrosion resistance. The copper alloy contacts are gold and tin-plated, ensuring reliable connections with low contact resistance. It supports up to 5A for VBUS and 1.25A for VCONN, with a dielectric withstand voltage of 100V AC RMS, operating from -40°C to 85°C for robust performance in various environments.
MULTICOMP MC002809 USB Type C Receptacle Specifications:
- Connector Type: USB 3.1 Type C Receptacle
- Number of Contacts: 24
- Mounting: Vertical Surface Mount
- Insulator Material: High Temperature Plastic UL94V-0, Black
- Shell Material: Stainless Steel, 0.2mm, Nickel Plated
- Contact Material: Copper Alloy, 0.15mm
- Contact Plating: 50y" Gold, 80" Matt Tin
- Contact Resistance: 40mΩ Max, 10mΩ Initial
- Current Rating: 5A VBUS, 1.25A VCONN
- Dielectric Withstanding Voltage: 100V AC RMS
- Insulation Resistance: >100MQ
- Operating Temperature: -40°C to 85°C
- Mating Force: 5-20N
- Unmated Force: 6-20N
- Durability: 10,000 cycles
- Dimensions: Height 8.9mm, Width 7.50mm, Other dimensions accordingly

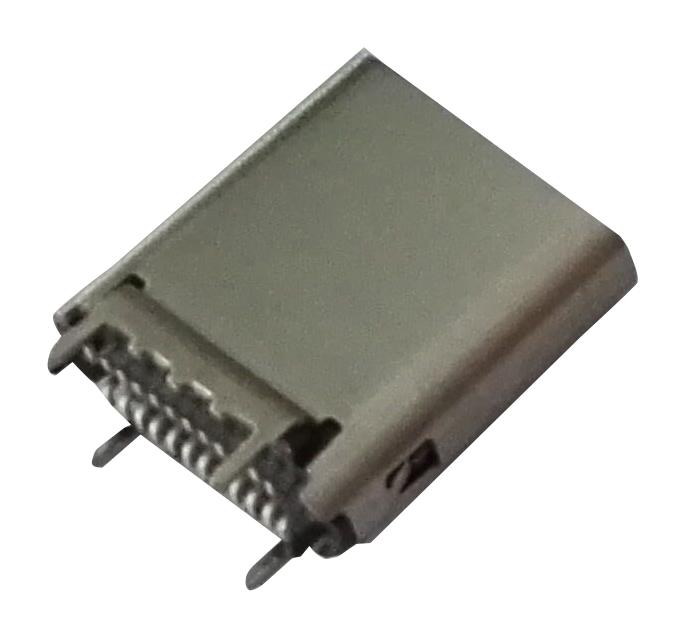

Buy the Buy Premier Farnell USB 3.1 Type C Receptacle Part Number MC002809 Online
Order the Premier Farnell USB Type C Receptacle part number MC002809 online today to benefit from high-quality construction, durable stainless steel shell, gold and tin-plated contacts, and robust electrical performance. This vertical SMT mount connector with 24 contacts supports current ratings up to 5A VBUS, ensuring compatibility with a wide range of devices and applications. Its high-temperature plastic insulator and construction designed for 10,000 mating cycles make it ideal for industrial, consumer, and professional electronics requiring reliable, long-lasting connections at an excellent value.
Get Premier Farnell USB 3.1 Type C Receptacle MC002809 today—designed for high-density connections, durability, and reliable data transfer in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP MC002809?
You can click on the BUY or RFQ button to purchase MC002809 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002809?
You can download the MC002809 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002809?
MULTICOMP
