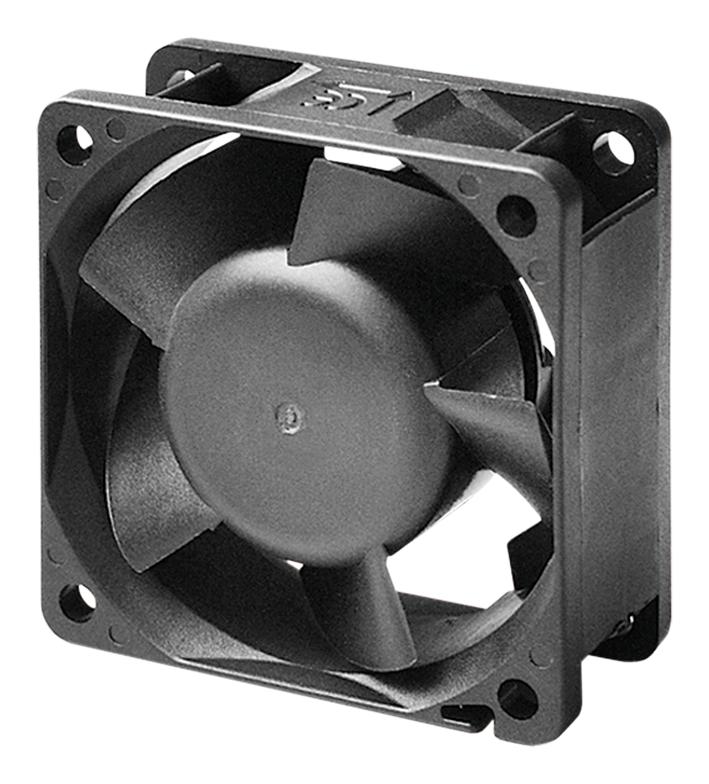

MULTICOMP MC36370 Axial Fan
The multicomp DC axial fan features a 2-phase, 4-pole brushless motor designed for efficient airflow. With dimensions of 60mm x 60mm x 25mm, it incorporates a thermoplastic PBT frame and fan blades, ensuring durability and heat resistance. The fan operates on 12V DC, with a rated current of 297mA and power consumption of 3.57 Watts, capable of delivering up to 36 CFM airflow at 6,900 RPM. It offers a lifespan of 70,000 hours, static pressure of 0.54 inches-H2O, and noise level of 44dB(A). Featuring automatic restart and polarity protection, it is suitable for cooling and ventilation applications.
MULTICOMP MC36370 Axial Fan Specifications:
- Motor design: 2 phases, 4-poles Brushless DC motor
- Bearing system: Precision Ball Bearing System
- Dimensions: 60mm x 60mm x 25mm
- Material of frame: Thermoplastic PBT
- Material of fan blade: Thermoplastic PBT
- Direction of rotation: Counter-clockwise viewed from front
- Mounting holes: Diameter 4.3mm in 8 holes
- Weight: 71g
- Rated voltage: 12V DC
- Rated current: 297mA / Max. 342mA
- Rated power consumption: 3.57 Watts / Max. 4.11 Watts
- Operating voltage range: 6V DC to 13.8V DC
- Starting voltage: 6V DC
- Operating temperature range: -10°C to +70°C
- Storage temperature range: -40°C to +70°C
- Rated speed: 6,900 RPM +15% at rated voltage
- Air flow: 36 CFM
- Static pressure: 0.54 inches-H2O
- Acoustic noise: 44dB(A)
- Insulation resistance: 10MQ at 500V DC between internal stator and lead wire
- Life expectancy: 70,000 Hours at 40°C, 65% Humidity
- Protection: Automatic Restart, Polarity Protection
Buy the Buy Premier Fan Part Number MC36370 Online
Get the high-performance multicomp axial fan with 12V DC operation, 6900 RPM, 36 CFM airflow, and durable thermoplastic construction today. Perfect for cooling and ventilation, this fan features automatic restart and polarity protection, ensuring safety and reliability. Its lifespan exceeds 70,000 hours, making it ideal for continuous operation in various applications. Buy online now to enjoy fast shipping, excellent quality, and the flexibility to meet your project’s cooling needs with ease and confidence.
Order your Premier SeriesMC36370 high-efficiency axial fan today and ensure reliable cooling performance for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP MC36370?
You can click on the BUY or RFQ button to purchase MC36370 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC36370?
You can download the MC36370 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC36370?
MULTICOMP
